T142AK Series
High Temperature – Oil Resistant Steel Braided Reinforced Air Hose
GENERAL APPLICATIONS
- Designed for long lasting service and maximum safety in heavy duty applications where resistance to oil is required
- High pressure air for mines and quarries

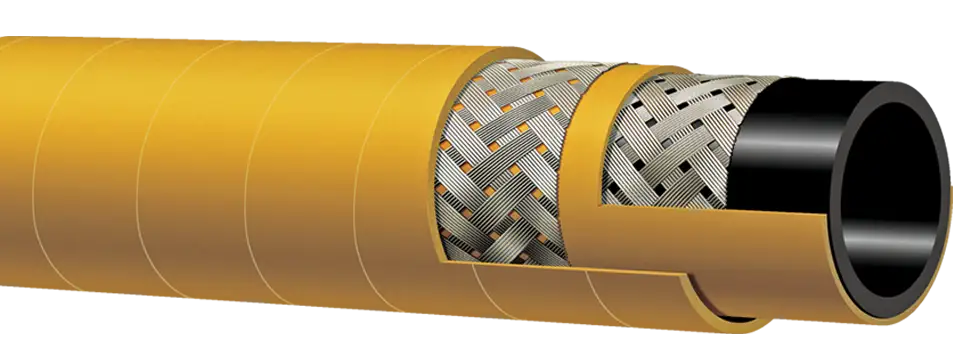

CONSTRUCTION
- Tube – Black Extruded NBR (RMA Class A) – oil mist resistant
- Reinforcement – High tensile steel wire braids
- Cover – Yellow SBR/NBR – abrasion, ozone, hydrocarbon and flame resistant – pin pricked
WORKING PRESSURE
40 Bar (600 PSI) 2", 2 1/2", 3"
SERVICE TEMPERATURE RANGE
-40°F (-40°C) to +248°F (+120°C)
BRANDING
ALFAGOMMA – ITALY – 142 HIGH TEMP STEEL AIR – OIL RESISTANT (embossed)
| Part Number | ID | OD | Max. Working Pressure (psi) |
Min. Bending Radius (in) at 68°F |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | |||||
| T142AK200 | 2 | 51 | 2.52 | 64 | 600 | 10 | 50/100 | 1.16 |
| T142AK250 | 2 1/2 | 63 | 3.03 | 77 | 600 | 12 1/2 | 100 | 1.93 |
| T142AK300 | 3 | 76 | 3.54 | 90 | 600 | 15 | 50/100 | 1.91 |
COUPLING SUGGESTIONS: Steel or malleable iron male insert NPT, female ground joint or washer type with spud, or universal quick-acting couplings attached with 2 or 4 bolt interlocking clamps or bands.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
