T155AK Series
300 PSI Textile Cord “Air Drill” Hose
GENERAL APPLICATIONS
- High quality air hose for mining and construction service
- Can be used for water

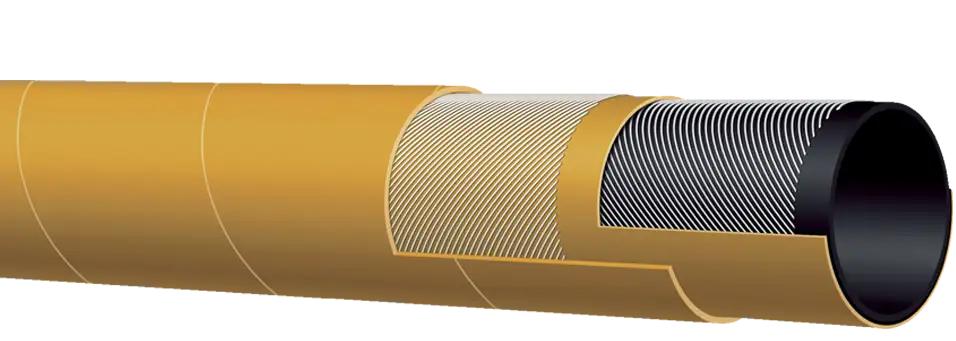

CONSTRUCTION
- Tube – Black non-conductive SBR/NBR blend – oil mist resistant
- Reinforcement – Spiraled, high tensile textile cords
- Cover – Yellow non-conductive SBR – abrasion and ozone-resistant
WORKING PRESSURE
Constant Pressure – 20 Bar (300 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY – 155 20 BAR (300 PSI) AIR (in blue letters).
| Series Number | ID | OD | Max Working Pressure (psi) | Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||
| T155AK050 | 1/2 | 13 | 0.83 | 21 | 300 | 50/100 | 0.22 |
| T155AK075 | 3/4 | 19 | 1.14 | 29 | 300 | 100 | 0.38 |
| T155AK100 | 1 | 25 | 1.38 | 35 | 300 | 50/100 | 0.48 |
| T155AK125 | 1 1/4 | 32 | 1.73 | 44 | 300 | 100 | 0.60 |
| T155AK150 | 1 1/2 | 38 | 1.97 | 50 | 300 | 100 | 0.70 |
| T155AK200 | 2 | 51 | 2.56 | 65 | 300 | 50/100 | 1.12 |
| T155AK250 | 2 1/2 | 63 | 3.11 | 79 | 300 | 50/100 | 1.55 |
| T155AK300 | 3 | 76 | 3.62 | 92 | 300 | 50/100 | 1.89 |
| T155AK400 | 4 | 102 | 4.65 | 118 | 300 | 50/100 | 2.47 |
COUPLING SUGGESTIONS: Steel or malleable iron male insert NPT, female ground joint or washer type with spud, attached with 2 or 4 bolt interlocking clamps or bands. Universal couplings may be used on sizes (1/2" – 2")
