Alfagomma
T903LE Series
150 PSI High Quality FDA Hot Air Blower Hose
GENERAL APPLICATIONS
- Hot air transfer between the air compressor and dry bulk tank on bulk material carriers

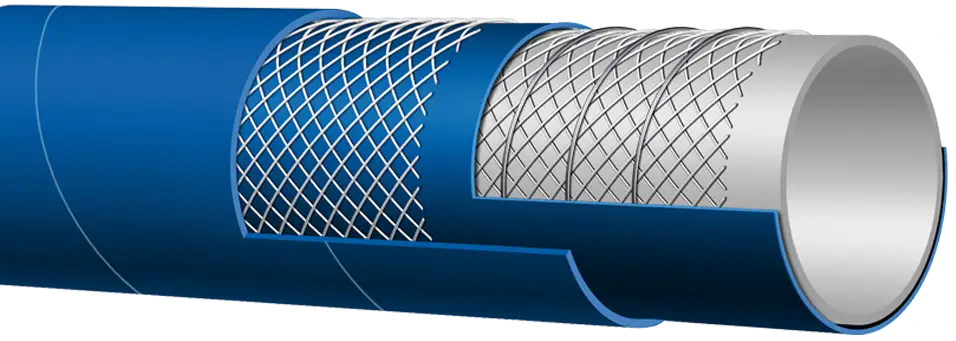

CONSTRUCTION
- Tube – White EPDM – heat-resistant. Meets FDA requirements
- Reinforcement – Spiraled high tensile textile cords with flexible steel helix wire
- Cover – Blue EPDM – heat, abrasion and ozone resistant
WORKING PRESSURE
Constant Pressure – 10 Bar (150 PSI)
SERVICE TEMPERATURE RANGE
-40°F (-40°C) to +356°F (+180°C)
BRANDING
ALFAGOMMA – ITALY – 903 10 BAR (150 PSI) – HOT AIR SERVICE – FDA (in white letters)
| Series Number | ID | OD | Max. Working Pressure (psi) |
Vacuum Rating Hg (in) |
Min. Bending Radius (in) at 68°F |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T903LE300 | 3 | 76 | 3.54 | 90 | 150 | 27 | 9 | 100 | 1.65 |
| T903LE400 | 4 | 102 | 4.57 | 116 | 150 | 27 | 12 | 100 | 2.26 |
COUPLING SUGGESTIONS: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
