Alfagomma
T714LG Series
Material Handling Hose FDA Grade
GENERAL APPLICATIONS
- For suction or discharge of wet or dry abrasive materials
- Suitable for handling materials for human consumption

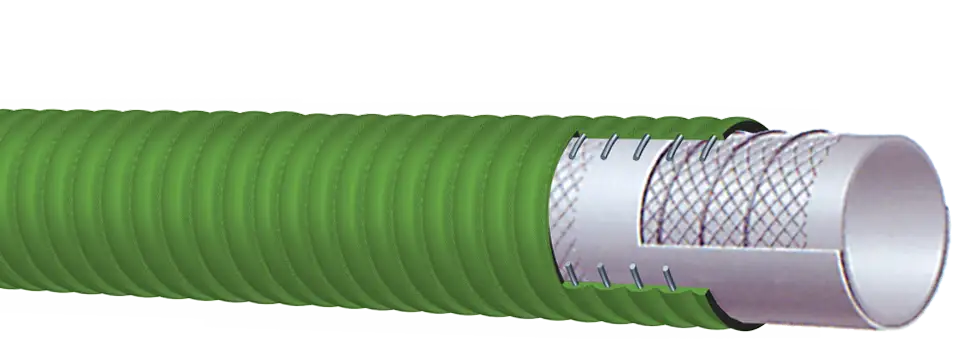

CONSTRUCTION
- Tube – Natural white gum rubber 3/16" thick. Meets FDA requirements
- Reinforcement – Spiraled high tensile textile cords with flexible steel helix wire and static wire
- Cover – Green corrugated Nat/SBR blend rubber
WORKING PRESSURE
Constant Pressure – 5 Bar (75 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY T714 – 5 Bar (75 PSI) – BULK FOOD & MATERIAL – S & D (in white letters)
| Part Number | ID | OD | Max Rec. WP (psi) |
Vacuum Hg (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T714LG500 | 5 | 127 | 5.63 | 143 | 75 | 24 | 12.5 | 20/50 | 3.8 |
| T714LG600 | 6 | 152 | 6.85 | 174 | 75 | 24 | 24 | 20/50 | 4.75 |
| T714LG800 | 8 | 203 | 8.94 | 227 | 75 | 21 | 32 | 20 | 7.01 |
CONSULT FOOD HOSE GUIDE FOR MATERIAL COMPATIBILITY.
Please note: Proper grounding of static wire will prolong tube life.
COUPLING SUGGESTIONS: Quick-Acting or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
