Alfagomma
T720LG Series
Bulk Food S & D Hose
GENERAL APPLICATIONS
- Suction and discharge of wet or dry abrasive materials
- Designed for grains, flour and pellet transfer

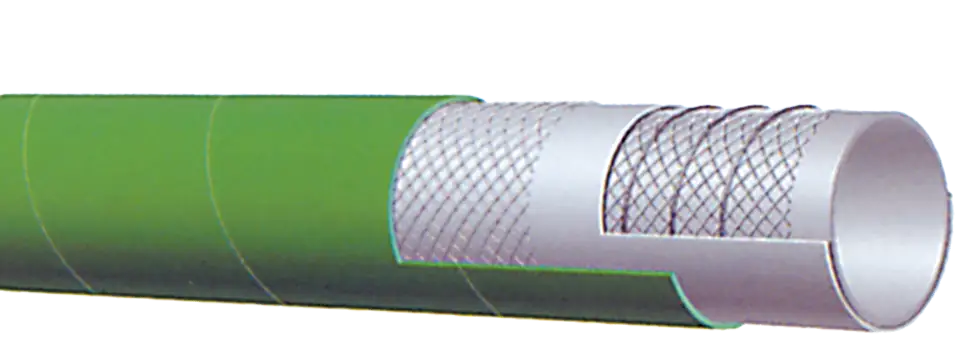

CONSTRUCTION
- Tube – Natural white gum rubber 3/16" thick – Meets FDA requirements
- Reinforcement – Spiraled high tensile textile cords with flexible steel helix wire and static wire
- Cover – Green SBR/EPDM blend – abrasion and ozone resistant
WORKING PRESSURE
Constant Pressure
• 10 Bar (150 PSI) for 2", 3", 4"
• 5 Bar (75 PSI) for 5", 6", 8"
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY T720 – BULK FOOD & MATERIAL – S & D (in white letters)
| Part Number | ID | OD | Max Rec. WP (psi) |
Vacuum Hg (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T720LG200 | 2 | 51 | 2.64 | 67 | 150 | 30 | 6 | 100 | 1.23 |
| T720LG300 | 3 | 76 | 3.62 | 92 | 150 | 27 | 9 | 100 | 1.91 |
| T720LG400 | 4 | 102 | 4.65 | 118 | 150 | 27 | 12 | 50/100 | 2.63 |
| T720LG500 | 5 | 127 | 5.71 | 145 | 75 | 24 | 20 | 20/50 | 3.81 |
| T720LG600 | 6 | 152 | 6.69 | 170 | 75 | 24 | 24 | 20/50 | 4.72 |
| T720LG800 | 8 | 203 | 8.78 | 223 | 75 | 21 | 32 | 20 | 7.01 |
CONSULT FOOD HOSE GUIDE FOR MATERIAL COMPATIBILITY.
Please note: Proper grounding of static wire will prolong tube life.
COUPLING SUGGESTIONS: Quick-Acting or combination nipples attached with single bolt, double bolt, wire or band type clamps
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
