Products
Alfagomma
T760LE Series
75 PSI Dry Bulk Food Discharge Hose
GENERAL APPLICATIONS
- Discharge or delivery of dry bulk food products

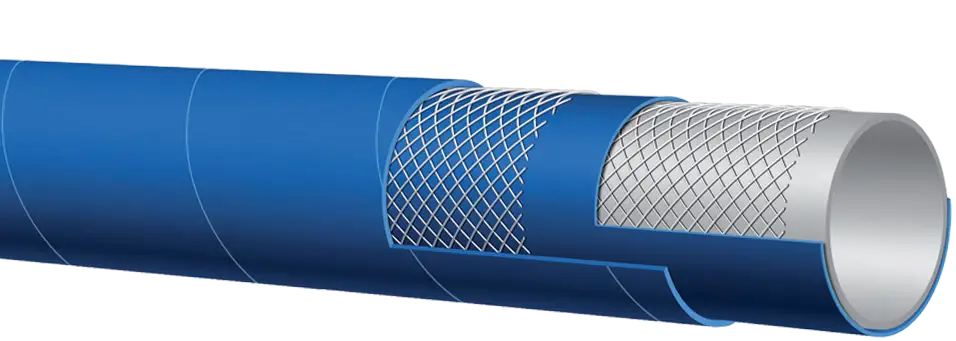

CONSTRUCTION
- Tube – 3/16" white NR – abrasion resistant – Meets FDA requirements
- Reinforcement – Spiraled high tensile textile cords with static wire
- Cover – Blue SBR/EPDM – abrasion and ozone resistant
WORKING PRESSURE
Constant Pressure – 5 Bar (75 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY T760 5 BAR (75 PSI) – BULK FOOD & MATERIAL DELIVERY (in white letters)
| Part Number | ID | OD | Max Rec. WP (psi) |
Vacuum Hg (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T760LE400 | 4 | 102 | 4.65 | 118 | 75 | 100 | 2.12 | ||
CONSULT FOOD HOSE GUIDE FOR MATERIAL COMPATIBILITY.
Please note: Proper grounding of static wire will prolong tube life.
COUPLING SUGGESTIONS: Quick-Acting or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
