Alfagomma

Multi Food S & D Hose

Alcoholic beverages – wine, beer & spirits up to 75% alcohol content and 150 proof
Fat foods-perfect for animal fats and any vegetable oils
Hot food-constant operations: liquid food up to +230°F (+110°C), fat foods up to +248°F (+120°C)
Hose may be sterilized with +266°F (+130°C) steam for 30 minutes or with 5% soda solution
Liquid food suction and discharge
Milk tanker collection and unloading-ideal for reel applications

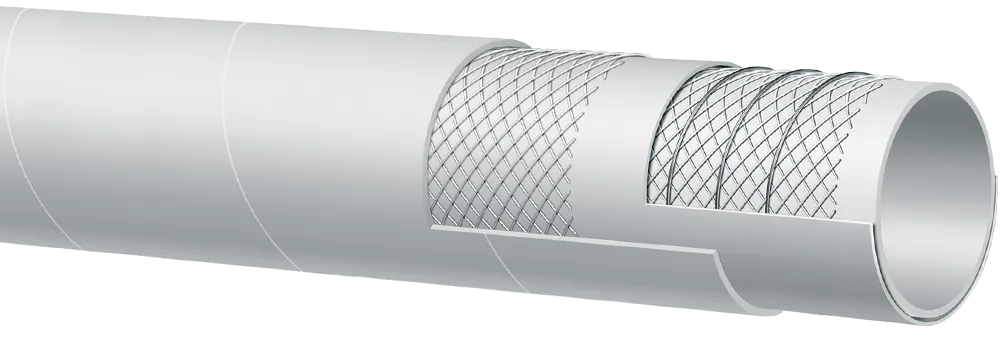

Tube – White NBR rubber specially compounded to satisfy the highest food industry standards. Compliant to FDA and 3A standards. Phthalate free
Reinforcement – High tensile textile cords with embedded steel helix wire
Cover – White NBR/PVC abrasion, weather and ozone resistant

Liquid foods -22°F (-30°C) to +230°F (+110°C)

Fat foods -22°F (-30°C) to +248°F (+120°C)

AG -ITALY- 400 EVOLUTION 10 bar (150 psi) MULTI FOOD S&D 110°C (230°F) FDA 3-A (food symbol) (in red letters)

Series Number	ID		OD		Max. Working Pressure (psi)	Vacuum Rating Hg (in)	Min. Bending Radius (in) at 68°F	Standard Length (ft)	Weight (lbs/ft)
Series Number	(in)	(mm)	(in)	(mm)	Max. Working Pressure (psi)	Vacuum Rating Hg (in)	Min. Bending Radius (in) at 68°F	Standard Length (ft)	Weight (lbs/ft)
T400LL100	1	25	1.42	36	150	30	2	100	0.56
T400LL125	1 1/4	32	1.69	43	150	30	2 1/2	100	0.68
T400LL150	1 1/2	38	1.93	49	150	30	3	100	0.79
T400LL200	2	51	2.48	63	150	30	4	100	1.07
T400LL250	2 1/2	63	2.99	76	150	27	5	100	1.61
T400LL300	3	76	3.50	89	150	27	6	100	1.94
T400LL400	4	102	4.57	116	150	27	8	100	2.63

CONSULT FOOD HOSE GUIDE FOR MATERIAL COMPATIBILITY.

COUPLING SUGGESTIONS: Quick-Acting or combination nipples attached with single bolt, double bolt, wire or band type clamps.

Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
