*Replacing T405LB
Alfagomma
T400LB* Evolution Series
Multi Food S & D Hose
GENERAL APPLICATIONS
- Liquid food suction and discharge
- Alcoholic beverages – wine, beer & spirits up to 75% alcohol content and 150 proof
- Milk tanker collection and unloading-ideal for reel applications
- Hot food-constant operations: liquid food up to 230° F (110° C), fat foods up to 248° F (120° C)
- Fat foods-perfect for animal fats and any vegetable oils
- Hose may be sterilized with 266° F (130° C) steam for 30 minutes or with 5% soda solution

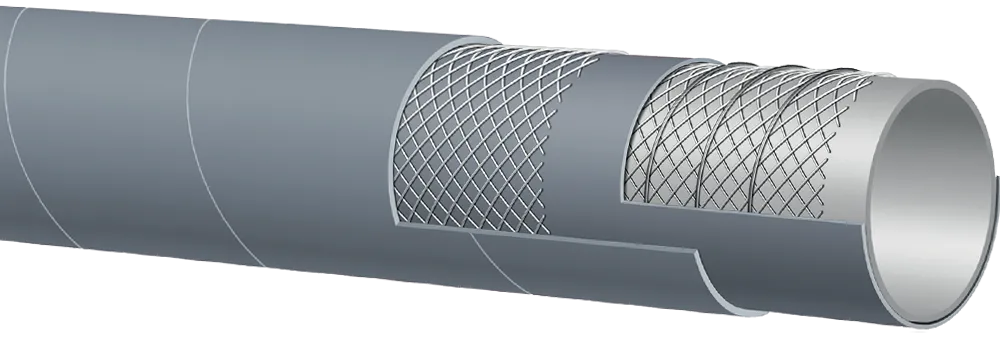

CONSTRUCTION
- Tube – White NBR rubber specially compounded to satisfy the highest food industry standards. Compliant to FDA and 3A standards. Phthalate free
- Reinforcement – High tensile textile cords with embedded steel helix wire
- Cover – Gray NBR/PVC abrasion, weather and ozone resistant
SERVICE TEMPERATURE RANGE
Liquid foods -22° F (-30° C) to +230° F (+110° C)
Fat foods -22° F (-30° C) to +248° F (+120° C)
BRANDING
AG -ITALY- 400 EVOLUTION 10 bar (150 psi) MULTI FOOD S&D 110 °C (230°F) FDA 3-A (food symbol)
| Series Number | ID | OD | Max Rec.* WP (psi) |
Min. Bending Radius |
Standard Length (ft) | Weight (lbs/ft) |
|||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T410LB100 | 1 | 25 | 1.46 | 37 | 240 | 30 | 5 | 100 | 0.6 |
| T410LB200 | 2 | 51 | 2.56 | 65 | 240 | 30 | 8 | 100 | 1.29 |
| T410LB300 | 3 | 76 | 3.62 | 92 | 240 | 30 | 12 | 100 | 2.23 |
CONSULT FOOD HOSE GUIDE FOR MATERIAL COMPATIBILITY.
COUPLING SUGGESTIONS: Quick-Acting or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
