Alfagomma
T410LL Series
240 PSI Food & Beverage S & D Hose – Crush Resistant
GENERAL APPLICATIONS
- Food and alcoholic beverage suction and discharge
- Specially designed for wine, beer and spirits, up to 190 proof or 95% alcohol content*
- Hose may be sterilized with 266° F (130° C) steam for 30 minutes or with 5% soda solution
- Not recommended for dry abrasive materials
*This correction is to rectify the relationship between the unit proof and % alcohol content in the U.S. system. The alcohol content % = 0.5 x Proof. There are discrepancies between proof and % alcohol content as it differs from country to country. Calculations for the U.S. are shown here. EXAMPLE: Proof is a method of measuring the alcohol content of spirits. A spirits’ product that has a 40% alcohol content by volume is 80 proof [40 multiplied by 2 = 80].

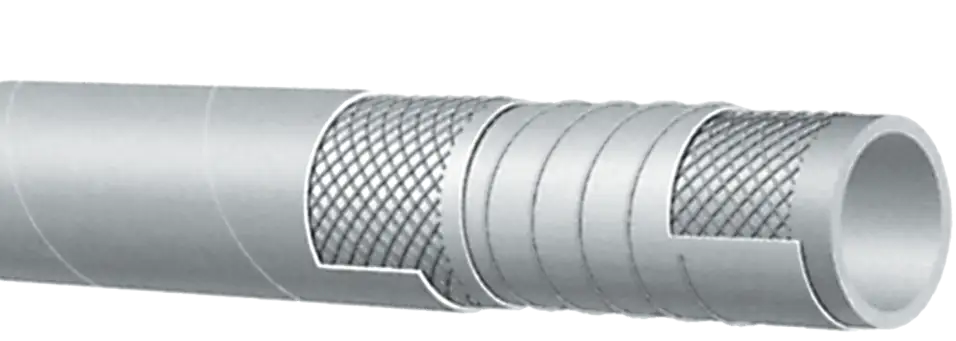

CONSTRUCTION
- Tube – White nontoxic CIIR – Meets FDA and 3A (18-03) requirements
- Reinforcement – High tensile textile cords with embedded PET helix
- Cover – White EPDM – abrasion and ozone resistant
WORKING PRESSURE
Constant Pressure – 16 Bar (240 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +226°F (+108°C)
BRANDING
ALFAGOMMA – ITALY T410 16 BAR (240 PSI) – FOOD SUCTION & DELIVERY – CRUSH RESISTANT (in black letters)
| Part Number | ID | OD | Max Rec. WP (psi) |
Vacuum HG (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T410LL100 | 1 | 25 | 1.42 | 36 | 150 | 30 | 2 | 100 | 0.48 |
| T410LL125 | 1 1/4 | 32 | 1.69 | 43 | 150 | 30 | 2.5 | 100 | 0.58 |
| T410LL150 | 1 1/2 | 38 | 1.93 | 49 | 150 | 30 | 3 | 100 | 0.68 |
| T410LL200 | 2 | 51 | 2.44 | 62 | 150 | 30 | 4 | 100 | 0.88 |
| T410LL250 | 2 1/2 | 63 | 2.99 | 76 | 150 | 30 | 7.5 | 100 | 1.36 |
| T410LL300 | 3 | 76 | 3.50 | 89 | 150 | 30 | 9 | 100 | 1.61 |
| T410LL350 | 3 1/2 | 90 | 4.02 | 102 | 150 | 30 | 10.5 | 100 | 1.82 |
| T410LL400 | 4 | 102 | 4.57 | 116 | 150 | 30 | 12 | 100 | 2.22 |
| T410LL500 | 5 | 127 | 5.55 | 141 | 150 | 25 | 18 | 20/50 | 3.18 |
| T410LL600 | 6 | 152 | 6.61 | 168 | 150 | 25 | 24 | 20/25/50/100 | 3.59 |
| T410LL800 | 8 | 203 | 8.70 | 221 | 150 | 25 | 32 | 20/25 | 6.64 |
| T410LL1000 | 10 | 254 | 10.71 | 272 | 150 | 25 | 50 | 20 | 9.09 |
| T410LL1200 | 12 | 305 | 12.87 | 327 | 150 | 25 | 61 | 20 | 12.54 |
COUPLING SUGGESTIONS: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
