Alfagomma
T426LB Series
150 PSI Gray Food S&D Hose
GENERAL APPLICATIONS
- Liquid, fatty, oily food and alcoholic beverage, max 150 proof and 75% alcohol content, suction and discharge
- Hose may be sterilized with 5% soda solution
- Not recommended for dry abrasive materials

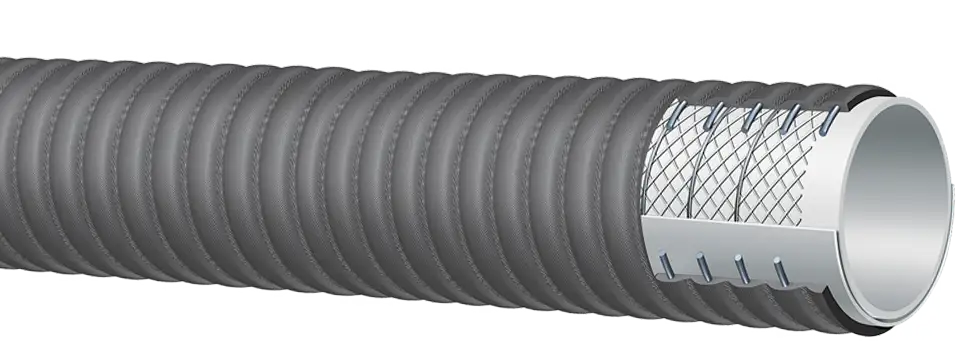

CONSTRUCTION
- Tube – White NBR – Meets FDA and 3A (18-03) requirements
- Reinforcement – High tensile textile cords with flexible steel helix wire
- Cover – Gray NBR/PVC – abrasion, ozone and oil resistant
WORKING PRESSURE
Constant Pressure – 10 Bar (150 PSI)
BRANDING
ALFAGOMMA – ITALY T426 10 BAR (150 PSI) – GENERAL PURPOSE FOOD QUALITY – S & D
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
*This correction is to rectify the relationship between the unit proof and % alcohol content in the U.S. system. The alcohol content % = 0.5 x Proof. There are discrepancies between proof and % alcohol content as it differs from country to country. Calculations for the U.S. are shown here. EXAMPLE: Proof is a method of measuring the alcohol content of spirits. A spirits’ product that has a 40% alcohol content by volume is 80 proof [40 multiplied by 2 = 80].
| Part Number | ID | OD | Max Rec. WP (psi) |
Vacuum Hg (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T426LB300 | 3 | 76 | 3.62 | 92 | 150 | 30 | 6 | 100 | 1.84 |
| T426LB400 | 4 | 102 | 4.65 | 118 | 150 | 30 | 8 | 100 | 2.69 |
CONSULT FOOD HOSE GUIDE FOR MATERIAL COMPATIBILITY.
COUPLING SUGGESTIONS: Quick-Acting or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
