Alfagomma
T452LE Series
150 PSI Potable Water Hose*
GENERAL APPLICATIONS
- Discharge of water used for drinking
- Most often used for temporary water lines in construction and industrial applications

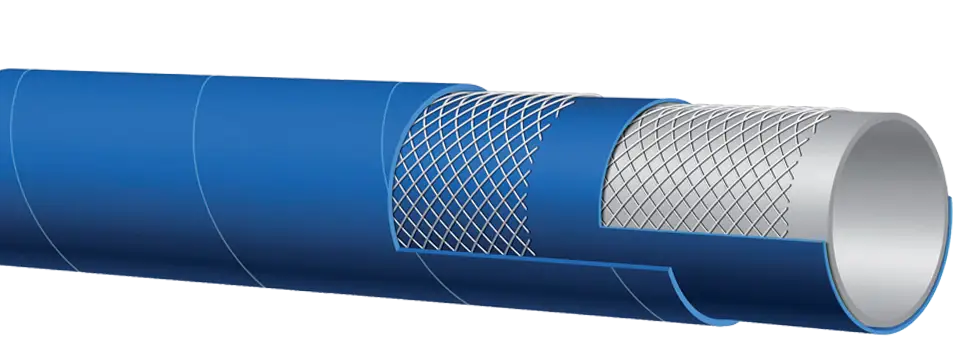

CONSTRUCTION
- Tube – White NR – Meets FDA and 3A (18-03) requirements
- Reinforcement – High tensile textile cords
- Cover – Blue SBR/EPDM blend – abrasion and ozone resistant
WORKING PRESSURE
Constant Pressure – 10 Bar (150 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY T452 10 BAR POTABLE WATER HOSE (150 PSI) WP (in white letters)
*This correction is to rectify the relationship between the unit proof and % alcohol content in the U.S. system. The alcohol content % = 0.5 x Proof. There are discrepancies between proof and % alcohol content as it differs from country to country. Calculations for the U.S. are shown here. EXAMPLE: Proof is a method of measuring the alcohol content of spirits. A spirits’ product that has a 40% alcohol content by volume is 80 proof [40 multiplied by 2 = 80].
| Part Number | ID | OD | Max Rec. WP (psi) |
Vacuum Hg (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T452LE150 | 1 1/2 | 38 | 1.97 | 50 | 150 | 100 | 0.73 | ||
| T452LE200 | 2 | 51 | 2.56 | 65 | 150 | 100 | 1.13 | ||
| T452LE300 | 3 | 76 | 3.62 | 92 | 150 | 100 | 1.88 | ||
| T452LE400 | 4 | 102 | 4.65 | 118 | 150 | 100 | 2.51 | ||
CONSULT FOOD HOSE GUIDE FOR MATERIAL COMPATIBILITY.
COUPLING SUGGESTIONS: Quick-Acting couplings attached with bands.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
