Alfagomma
HWT763AA Series
75 PSI Heavy Duty Dry Powder Delivery Hose 3/8" Tube
GENERAL APPLICATIONS
- Discharge of dry powders under low pressure
- Pneumatic transfer of dry materials and abrasive slurries

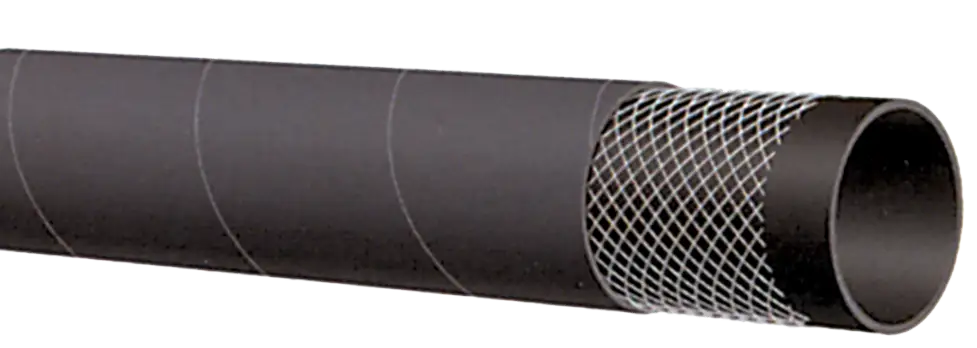

CONSTRUCTION
- Tube – 3/8" black static conducting NR – compounded to resist cutting by abrasive materials
- Reinforcement – Spiraled high tensile textile cords
- Cover – Black conductive SBR/NR blend – abrasion and ozone resistant
WORKING PRESSURE
Constant Pressure – 5 Bar (75 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY HWT 763 5 BAR (75 PSI) HEAVY DUTY BULK MATERIAL DELIVERY (in green letters)
| Series Number | ID | OD | Max. Working Pressure (psi) |
Standard Length (ft) |
Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||
| HWT763AA400 | 4 | 102 | 4.96 | 126 | 75 | 100 | 2.56 |
NOTES:
• Excessive bending during operation may cause premature wear.
COUPLING SUGGESTIONS: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
