Alfagomma
T720AA Series
Bulk Material S & D Hose
GENERAL APPLICATIONS
- Suction and discharge of wet or dry abrasive materials
- Designed for grains and dry cement

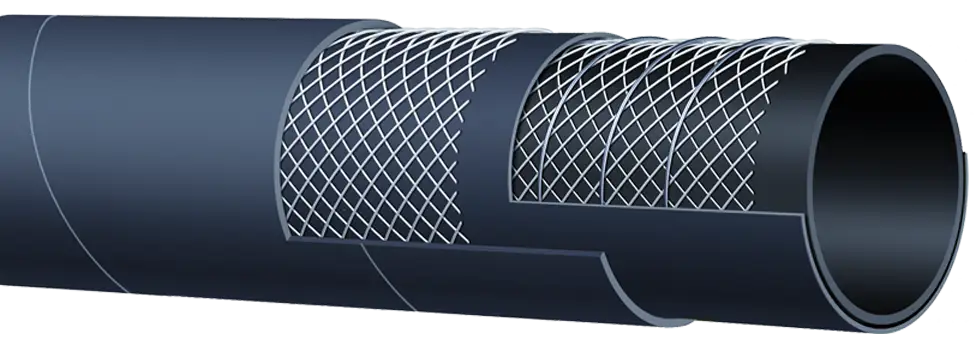

CONSTRUCTION
- Tube – 3/16" black conductive NR – abrasion resistant
- Reinforcement – Spiraled high tensile textile cords with flexible steel helix wire
- Cover – Black conductive SBR/NR blend – abrasion and ozone resistant
WORKING PRESSURE
Constant Pressure
• 10 Bar (150 PSI) for 2", 3", 4"
• 5 Bar (75 PSI) for 5", 6", 8"
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY T720 – BULK MATERIAL – S & D (in white letters)
| Part Number | ID | OD | Max Rec. WP (psi) |
Vacuum Hg (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T720AA200 | 2 | 51 | 2.56 | 65 | 150 | 30 | 6 | 100 | 0.97 |
| T720AA300 | 3 | 76 | 3.54 | 90 | 150 | 27 | 9 | 100 | 1.54 |
| T720AA400 | 4 | 102 | 4.57 | 116 | 150 | 27 | 12 | 50/100 | 2.15 |
| T720AA500 | 5 | 127 | 5.63 | 143 | 75 | 24 | 20 | 20/50 | 3.20 |
| T720AA600 | 6 | 152 | 6.61 | 168 | 75 | 24 | 24 | 20/50 | 4.01 |
| T720AA800 | 8 | 203 | 8.70 | 221 | 75 | 21 | 32 | 20 | 6.05 |
COUPLING SUGGESTIONS: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
