T74SAA Series
1275 PSI Construction Duty Textile Reinforced Concrete Pumping Hose
GENERAL APPLICATIONS
- Easy-handling, textile-reinforced construction for use on trailer mounted line pumps where longer hose lengths are required
- Larger sizes used on concrete boom pumps
- Replacement hose for wire-reinforced concrete hose where lightweight and ease of handling are warranted

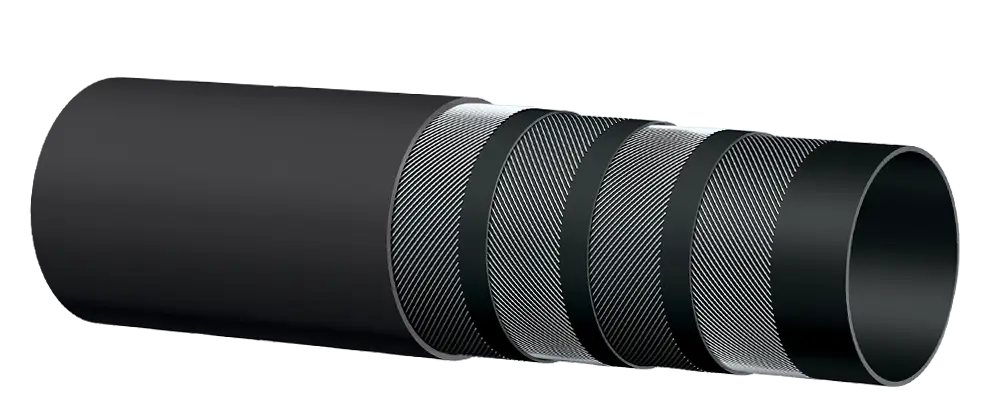

CONSTRUCTION
- Tube – Black conductive NR – abrasion resistant
- Reinforcement – High tensile textile cords
- Cover – Black conductive SBR/NR blend – abrasion and ozone resistant
WORKING PRESSURE
Constant Pressure – 1275 PSI
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY 74S 85 BAR (1275 PSI) W. P. HEAVY DUTY CONCRETE PUMPING (in yellow layline with black letters)
FEATURES AND ADVANTAGES
- Heavy Duty Construction – Durable, thick walled construction, resists kinking, elongation and vibration during operation. All sizes rated to working pressure of 1275 PSI with 2:1 safety factor.
- Textile Yarn Reinforcement – Operator friendly, lighter weight versus wire reinforced hoses for easier handling while still providing extended service life in heavy-duty applications.
- Abrasion Resistant Tube and Cover – The NR (natural rubber) tube resists the wear caused by the flow of abrasive concrete. The SBR/NR blend cover resists the wear caused by dragging over rough surfaces, as well as environmental (UV/ozone) damage.
- Cold Flex Materials – Hose remains flexible in sub-zero temperatures.
| Series Number | ID | OD | Wall Thickness (mm) |
Max. Working Pressure (psi) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) |
Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T74SAA150 | 1 1/2 | 38 | 2.24 | 57 | 10 | 1275 | 7 1/2 | 100 | 1.22 |
| T74SAA200 | 2 | 51 | 2.80 | 71 | 10 | 1275 | 10 | 100 | 1.45 |
| T74SAA250 | 2 1/2 | 63 | 3.27 | 83 | 10 | 1275 | 10 1/2 | 100 | 1.78 |
| T74SAA300 | 3 | 76 | 3.97 | 101 | 12 | 1275 | 15 | 100 | 2.46 |
| T74SAA350 | 3 1/2 | 90 | 4.57 | 116 | 13 | 1275 | 17 1/2 | 100 | 2.87 |
| T74SAA400 | 4 | 102 | 5.04 | 128 | 13 | 1275 | 20 | 100 | 3.34 |
COUPLING SUGGESTIONS: CHC-CA Series “California Style” or CHC-US Series "Victaulic Style"couplings
