Alfagomma
T753AA & T753AG Series*
180 PSI 4-Ply Abrasive Material Blast Hose
* Formerly T750AA/T750AG
GENERAL APPLICATIONS
- Designed to convey abrasives, sand and shot blast material
CONSTRUCTION
- Tube – Black static conducting natural rubber – offering excellent abrasion resistance, upgraded to 50mm3 (cubed) rating
- Reinforcement – High tensile textile cords – 4-ply construction
- Cover – Black or green, conductive SBR/NR blend – abrasion and ozone resistant – pin pricked
WORKING PRESSURE
Constant Pressure – 12 Bar (180 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING

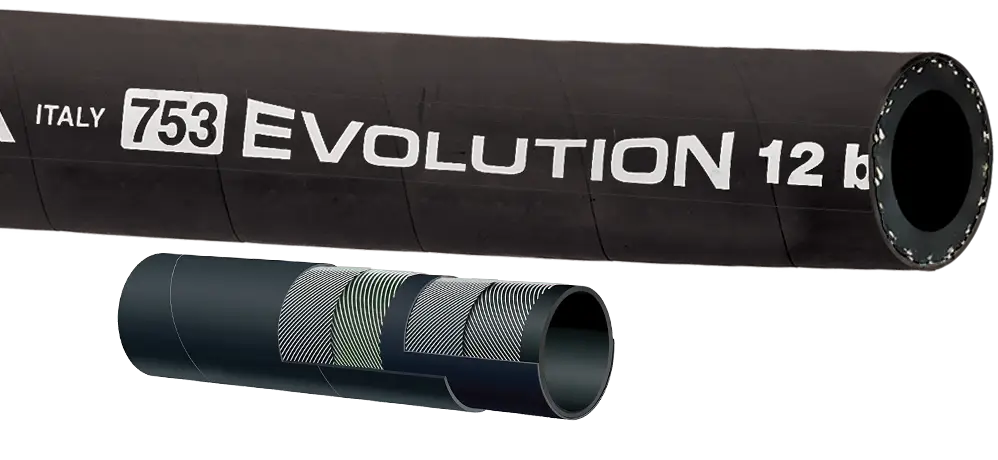

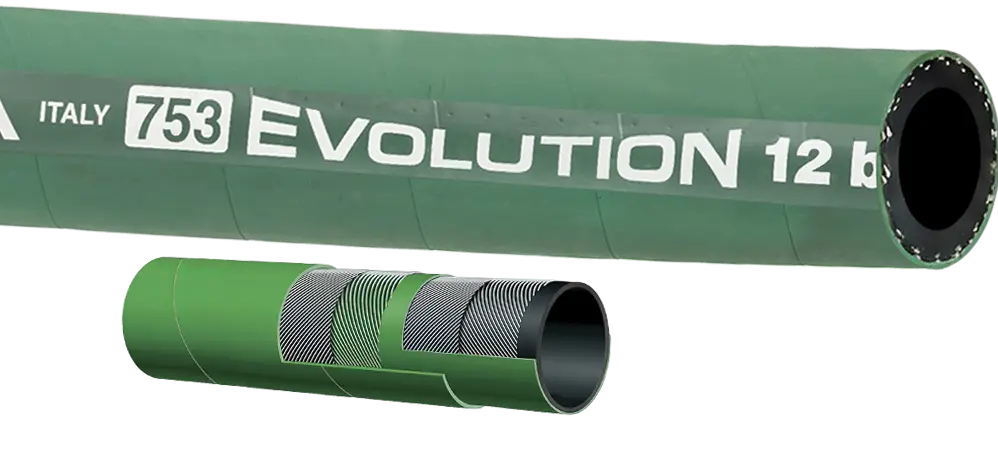

ALFAGOMMA – ITALY – 753 12 BAR (180 PSI) PREMIUM ABRASIVE MATERIAL BLAST Ω (in white letters)
| Series Number | ID | OD | Tube Thickness (mm) |
Max Rec.* WP (psi) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | |||||
| T753AA/AG075 | 3/4 | 19 | 1.50 | 38 | 0.236 | 180 | 50/100 | 0.68 |
| T753AA/AG100 | 1 | 25 | 1.89 | 48 | 0.283 | 180 | 50/100 | 1.04 |
| T753AA/AG125 | 1 1/4 | 32 | 2.17 | 55 | 0.283 | 180 | 50/100 | 1.23 |
| T753AA/AG150 | 1 1/2 | 38 | 2.36 | 60 | 0.260 | 180 | 50/100 | 1.40 |
| T753AA200 | 2 | 51 | 2.87 | 73 | 0.260 | 180 | 50/100 | 1.77 |
| Hose ID (in) | Hose Ends | Nozzle Holders | Threaded Female Adapter | Gaskets |
|---|---|---|---|---|
| 3/4 | Q-AL1, Q-BR1, Q-PI1 | NH-AL1, NH-BR1 | – | SBG |
| 1 | Q-AL2, Q-BR2, Q-PI2 | NH-AL2, NH-BR2 | – | SBG |
| 1 1/4 | Q-AL3, Q-BR3, Q-PI3 | NH-AL3, NH-BR3 | SB-AL1, SB-BR1 | SBG |
| 1 1/2 | Q-AL4, Q-BR4, Q-PI4 | NH-AL4, NH-BR4 | SB-AL2, SB-BR2 | SBG |
NOTES:Tolerances according to RMA Class 311-A
COUPLING SUGGESTIONS:Sandblast couplings and nozzle holders attached with screws. See next column for coupling part numbers.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
