Alfagomma

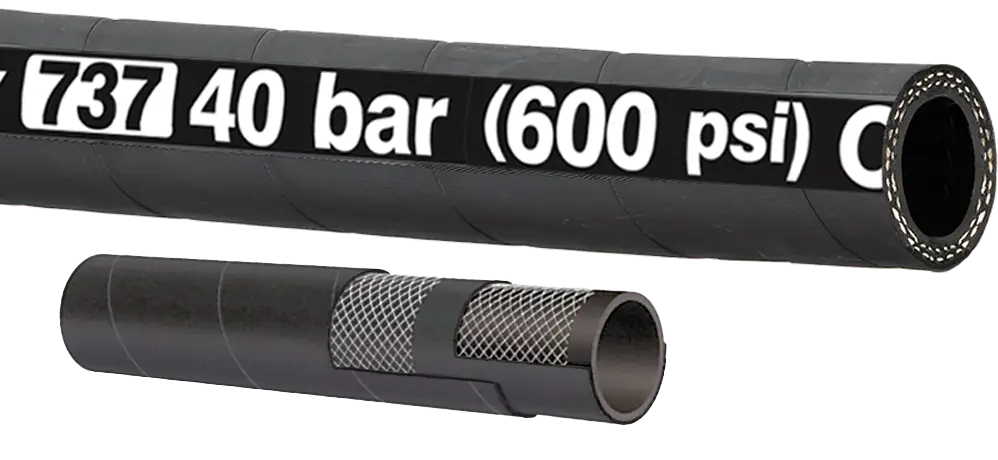

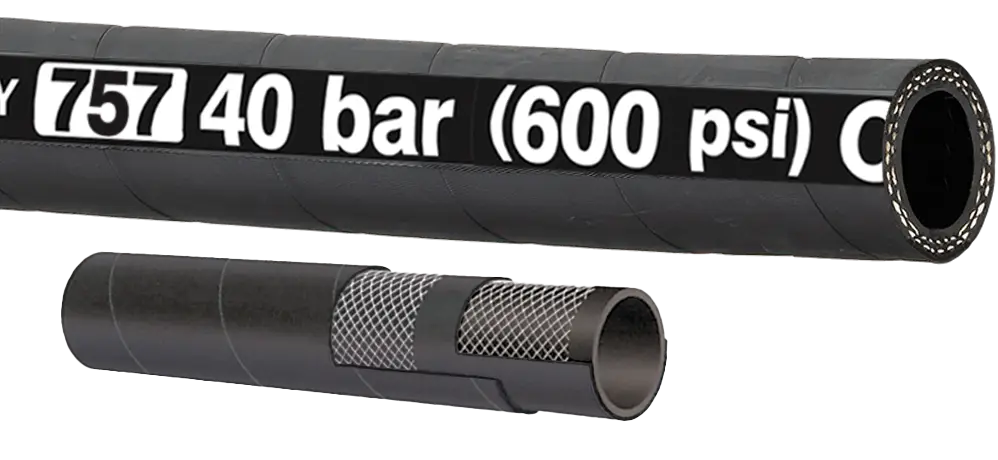

T757AA Series & T737AA Series*
600 PSI Plaster & Concrete Hose
* T737AA for 3" ID
GENERAL APPLICATIONS
- Designed for pumping plaster, grout, and wet cement to placement sites

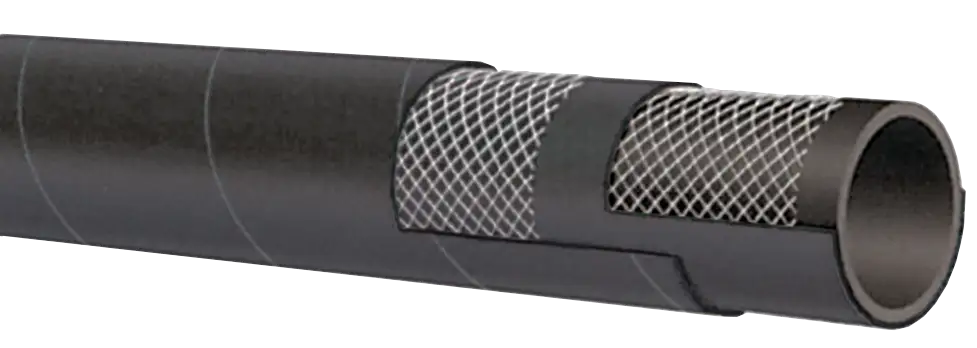

CONSTRUCTION
- Tube – Black conductive NR – abrasion resistant
- Reinforcement – High tensile textile cords
- Cover – Black conductive SBR/NR – abrasion and ozone resistant
WORKING PRESSURE
Constant Pressure – 40 Bar (600 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY 757 – 40 BAR (600 PSI) PLASTER & CONCRETE (in white letters) and ALFAGOMMA – ITALY 737 – 40 BAR (600 PSI) PLASTER & CONCRETE (in white letters)
| Series Number | ID | OD | Max. Working Pressure (psi) |
Standard Length (ft) |
Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||
| T757AA150 | 1 1/2 | 38 | 2.13 | 54 | 600 | 100 | 0.82 |
| T757AA200 | 2 | 51 | 2.64 | 67 | 600 | 100 | 1.09 |
| T737AA300 | 3 | 76 | 4.09 | 104 | 600 | 100 | 2.96 |
COUPLING SUGGESTIONS: Tubular steel full flow male permanently swaged or internally expanded with ferrule to provide maximum hose coupling compatibility.
