Alfagomma

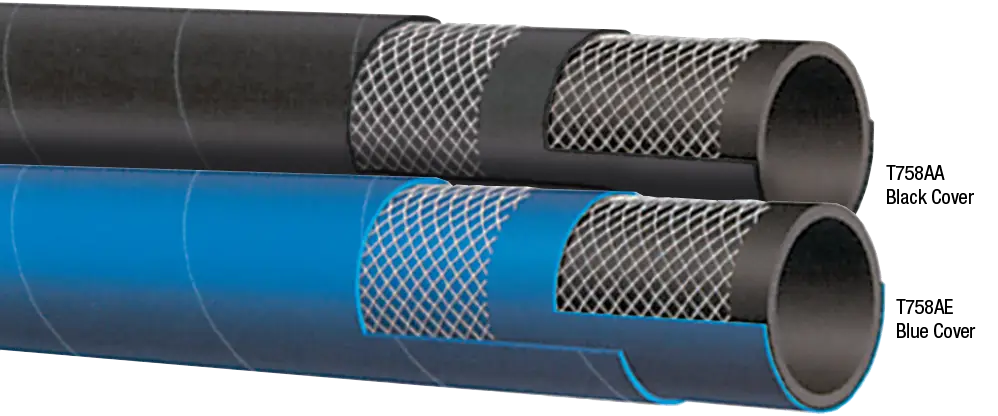

T758AA & T758AE Series
800 PSI Plaster, Grout & Concrete Hose
GENERAL APPLICATIONS
- Designed for pumping plaster, grout, wet cement to construction placement sites at rated pressures
CONSTRUCTION
- Tube – Black conductive NR – abrasion-resistant
- Reinforcement – Spiraled high tensile textile cords
- Cover – Black SBR/NR. Blue SBR/EPDM
WORKING PRESSURE
Constant Pressure – 55 Bar (800 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY T758 – 55 BAR (800 PSI) PLASTER & CONCRETE (in white letters)
| Series Number | ID | OD | Max Rec. WP (psi) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||
| T758AA/AE100 | 1 | 25 | 1.57 | 40 | 800 | 100 | 0.60 |
| T758AA/AE125 | 1 1/4 | 32 | 1.93 | 49 | 800 | 100 | 0.85 |
| T758AA/AE150 | 1 1/2 | 38 | 2.28 | 58 | 800 | 100 | 1.15 |
| T758AA/AE200 | 2 | 51 | 2.80 | 71 | 800 | 100 | 1.49 |
COUPLING SUGGESTIONS: Tubular steel full flow male permanently swaged or internally expanded with ferrule to provide maximum hose coupling compatibility.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
