Alfagomma
T766AA Series
150 PSI Heavy Duty Dry Powder Delivery Hose
GENERAL APPLICATIONS
- Discharge of dry powders in heavy duty applications, such as dry cement, grains and animal feed transfer

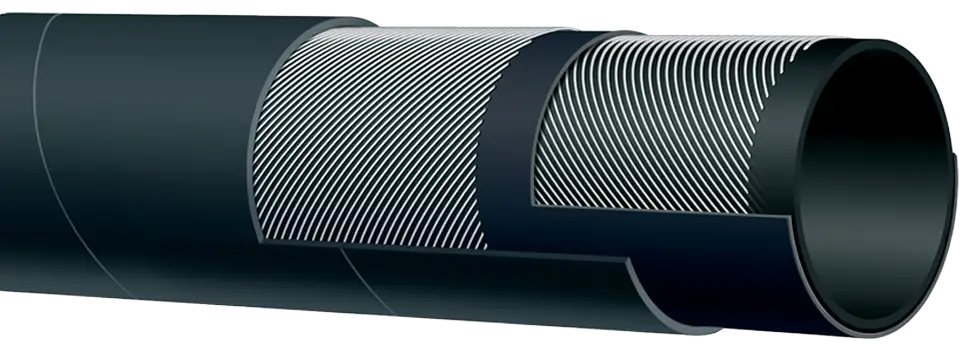

CONSTRUCTION
- Tube – 1/4" black static conducting NR – compounded to resist cutting by abrasive materials
- Reinforcement – Spiraled high tensile textile cords
- Cover – Black conductive SBR/NR blend – abrasion and ozone resistant
WORKING PRESSURE
Constant Pressure – 10 Bar (150 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY T766 10 Bar (150 PSI) BULK MATERIAL DELIVERY (in white letters)
| Part Number | ID | OD | Max Rec. WP (psi) |
Standard Length (ft) |
Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||
| T766AA400 | 4 | 102 | 4.65 | 118 | 150 | 100 | 1.96 |
NOTES: Excessive bending during operation may cause premature wear.
COUPLING SUGGESTIONS: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
