Alfagomma

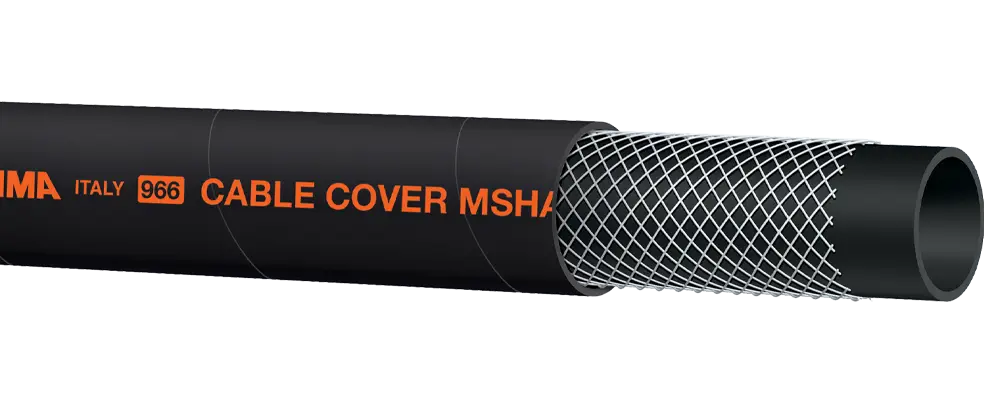

T966AA Series*
Cable Protection Hose
GENERAL APPLICATIONS
- Cable protection in underground mining operations. Also suitable for light duty air and water applications up to 75 psi working pressures
CONSTRUCTION
- Tube – Black conductive SBR/NR blend
- Reinforcement – High tensile textile cords with 4 spiral reinforcement
- Cover – Black conductive SBR compounds providing abrasion, ozone and flame resistance
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176 °F (+80°C)
BRANDING
ALFAGOMMA ITALY 966 CABLE COVER MSHA IC-152/23 5 bar (75 psi) (in orange letters)
FEATURES AND ADVANTAGES
- Comprehensive Size Range - Nine available sizes to accommodate a wide range of hose and cable sizes.
- MSHA Accepted - Hose is accepted as having met the Interim Fire Criteria Acceptance of Products Taken Into Underground Mines per MSHA IC-152/23.
| Part Number | ID | OD | Max Rec. WP (psi) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) |
Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | |||||
| T966AA050 | 1/2 | 13 | 0.83 | 21 | 75 | 4 | 100 | 0.17 |
| T966AA062 | 5/8 | 16 | 0.94 | 26 | 75 | 5 | 100 | 0.19 |
| T966AA075 | 3/4 | 19 | 1.14 | 29 | 75 | 6 | 100 | 0.28 |
| T966AA100 | 1 | 25 | 1.38 | 35 | 75 | 8 | 100 | 0.35 |
| T966AA125 | 1 1/4 | 32 | 1.65 | 42 | 75 | 10 | 100 | 0.43 |
| T966AA150 | 1 1/2 | 38 | 1.89 | 48 | 75 | 15 | 100 | 0.50 |
| T966AA175 | 1 3/4 | 45 | 2.17 | 55 | 75 | 18 | 100 | 0.58 |
| T966AA200 | 2 | 51 | 2.40 | 61 | 75 | 20 | 100 | 0.65 |
| T966AA250 | 2 1/2 | 63 | 2.87 | 73 | 75 | 25 | 100 | 0.82 |
COUPLING SUGGESTIONS: Tubular steel full flow male permanently swaged or internally expanded with ferrule to provide maximum hose coupling compatibility.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
