Alfagomma

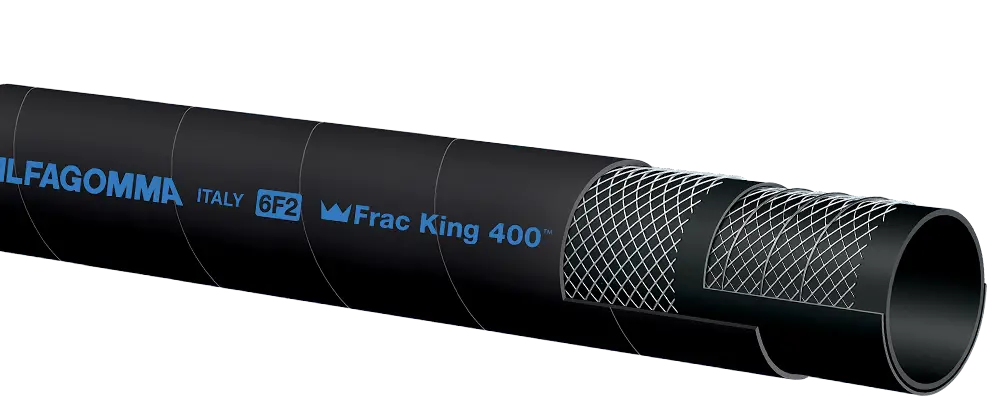

FRAC KING™ 400 6F2AA Series
High Performance Frac Fluid Hose
GENERAL APPLICATIONS
- Durable and versatile hose for a variety of oil and gas field applications involving hydraulic frac fluids, abrasive slurries, wastewater, lubricants, water/sand and other high pressure solutions; as well as simulation fluids used in the well drilling process
CONSTRUCTION
- Tube – Conductive nitrile (NBR) meeting ARPM Class A (high oil resistance) rating
- Reinforcement – Helical wire surrounded by textile cords
- Cover – Highly abrasive-resistant SBR compound for abrasion and ozone resistance
SERVICE TEMPERATURE RANGE
-40°F (-40°C) to +180°F (+82°C)
BRANDING
ALFAGOMMA – ITALY 6F2 Frac King 400 27 bar (400 psi) FRAC S&D (in blue letters)
Frac King 400 27 bar (400 psi) FRAC S&D (in blue letters)FEATURES AND ADVANTAGES
- Heavy Duty Construction – Heavy duty hose with highly abrasive-resistant cover for tough environments.
- Lightweight – For easy handling and maneuvering in frac field applications.
- Easy Assembly – Coupling slides in easier than competitive products.
- Vacuum Capabilities – Full vacuum rating.
- Longer Lengths Available – 200' lengths available upon request.
| Part Number | ID | OD | Max Rec. WP (psi) |
Vacuum Hg (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| 6F2AA400 | 4 | 102 | 4.96 | 126 | 400 | 30 | 20 | 100 | 4.07 |
COUPLING SUGGESTIONS: Tubular steel full flow male permanently swaged or internally expanded with ferrule to provide maximum hose coupling compatibility.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
