CT601AA Series

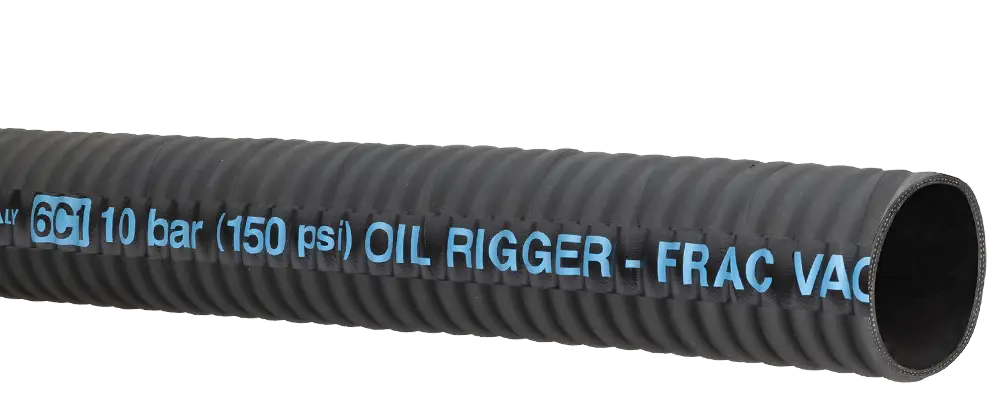

150 PSI Corrugated Oil Rigger/Oil Field-Frac Tank Hose
GENERAL APPLICATIONS
- Frac solutions and slurries
- Handling crude oil
- Oil field vacuum tank service
Note: For applications up to 35% aromatics. Not for use with refined petroleum products
CONSTRUCTION
- Tube – Black Nitrile – PVC blend, limited oil resistance, for oil field use
- Reinforcement – High tensile textile cords with flexible steel helix wire
- Cover – Black corrugated SBR – abrasion, ozone, limited oil resistance
WORKING PRESSURE
Constant Pressure – 10 Bar (150 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY 6C1 10 BAR (150 PSI) OIL FIELD-FRACK TANK S & D (in blue letters)
| Series Number | ID | OD | Max Working Pressure (psi) |
Vacuum Rating Hg (in) |
Min. Bending Radius (in) at 68°F |
Standard Length (ft) |
Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| CT601AA200 | 2 | 51 | 2.40 | 61 | 150 | 30 | 6 | 100 | 0.86 |
| CT601AA300 | 3 | 76 | 3.46 | 88 | 150 | 27 | 9 | 100 | 1.61 |
| CT601AA400 | 4 | 102 | 4.49 | 114 | 150 | 27 | 12 | 100 | 2.39 |
COUPLING SUGGESTIONS: Quick-Acting couplings or combination nipples attached with bands.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
