Alfagomma
ST6D2AA Series

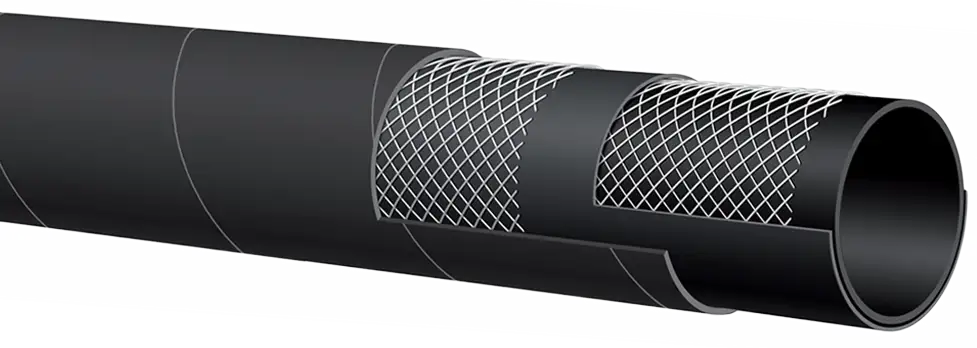

400 PSI Oil Rigger/Frack Discharge Hose with SUPERTUFF Cover
GENERAL APPLICATIONS
- Fracking fluids, liquid mud and crude oil delivery in heavy duty oil field and gas exploration
CONSTRUCTION
- Tube – Black synthetic elastomer
- Reinforcement – High tensile textile cords
- Cover – Black SUPERTUFF cover – abrasion, oil and ozone resistant
WORKING PRESSURE
Constant Pressure – 27 Bar (400 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY OIL RIGGER – FRACK 27 BAR (400 PSI) (in blue letters)
| Part Number | ID | OD | Max Rec. WP (psi) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||
| ST6D2AA400 | 4 | 102 | 4.72 | 120 | 400 | 100 | 2.93 |
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
