T600AA Series

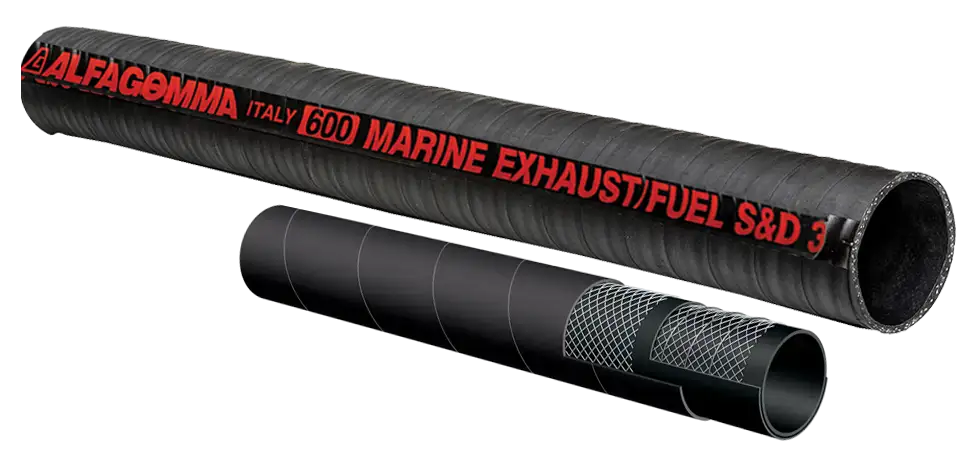

Hard Wall Marine Exhaust Hose USCG/SAE J1527 A2/B2
GENERAL APPLICATIONS
- Fuel, oil and hydraulic fluids suction and discharge
- Offers maximum flexibility
- Suitable for exhaust gas from water cooled stationary or marine diesel engines
CONSTRUCTION
- Tube – Black NBR – exhaust gas, fuel and fire resistant
- Reinforcement – High tensile textile cords with flexible steel helix wire – 4 ply
- Cover – Black NBR/PVC blend – abrasion, ozone, hydrocarbon and fire resistant
WORKING PRESSURE
Constant Pressure – 2 Bar (30 PSI)
Burst Pressure – 5:1
SERVICE TEMPERATURE RANGE
-4°F (-20°C) to +212°F (+100°C)
BRANDING
ALFAGOMMA – ITALY 600 MARINE EXHAUST/FUEL S & D – <SIZE> – USCG/SAE J1527 TYPE A2 (in red letters)
| Series Number | ID | OD | Max Rec. WP (psi) |
Vacuum Hg (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T600AA062 | 5/8 | 16 | 1.02 | 26 | 30 | 30 | 2 | 25/50 | 0.36 |
| T600AA075 | 3/4 | 19 | 1.14 | 29 | 30 | 30 | 2 1/4 | 25/50 | 0.44 |
| T600AA087 | 7/8 | 22 | 1.26 | 32 | 30 | 30 | 2 3/4 | 25/50 | 0.50 |
| T600AA100 | 1 | 25 | 1.38 | 35 | 30 | 30 | 3 | 25/50 | 0.56 |
| T600AA112 | 1 1/8 | 28 | 1.50 | 38 | 30 | 30 | 3 1/4 | 25/50 | 0.60 |
| T600AA125 | 1 1/4 | 32 | 1.65 | 42 | 30 | 30 | 3 3/4 | 25/50 | 0.65 |
| T600AA137 | 1 3/8 | 35 | 1.77 | 45 | 30 | 30 | 4 1/4 | 25/50 | 0.70 |
| T600AA150 | 1 1/2 | 38 | 1.89 | 48 | 30 | 30 | 4 1/2 | 25/50 | 0.76 |
| T600AA162 | 1 5/8 | 42 | 2.17 | 52 | 30 | 30 | 5 | 25/50 | 0.81 |
| T600AA175 | 1 3/4 | 45 | 2.16 | 55 | 30 | 30 | 5 1/4 | 25/50 | 0.87 |
| T600AA189 | 1 7/8 | 48 | 2.28 | 58 | 30 | 30 | 5 3/4 | 25/50 | 0.91 |
| T600AA200 | 2 | 51 | 2.40 | 61 | 30 | 30 | 6 | 25/50 | 0.99 |
| T600AA225 | 2 1/4 | 57 | 2.64 | 67 | 30 | 30 | 6 3/4 | 25/50 | 1.09 |
| T600AA238 | 2 3/8 | 60 | 2.76 | 70 | 30 | 27 | 7 | 25/50 | 1.25 |
| T600AA250 | 2 1/2 | 63 | 2.87 | 73 | 30 | 27 | 7 1/2 | 25/50 | 1.31 |
| T600AA275 | 2 3/4 | 70 | 3.11 | 80 | 30 | 27 | 8 1/4 | 25/50 | 1.41 |
| T600AA300 | 3 | 76 | 3.39 | 86 | 30 | 27 | 9 | 25/50 | 1.53 |
| T600AA350 | 3 1/2 | 90 | 3.94 | 100 | 30 | 27 | 10 1/2 | 25/50 | 1.91 |
| T600AA400 | 4 | 102 | 4.41 | 112 | 30 | 27 | 12 | 25/50 | 2.12 |
| T600AA450 | 4 1/2 | 115 | 5.00 | 127 | 30 | 27 | 13 1/2 | 25/50 | 2.72 |
| T600AA500 | 5 | 127 | 5.55 | 141 | 30 | 24 | 15 | 25/50 | 3.04 |
*Does not meet J2006 or J1942 requirements.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
