Alfagomma
T605AA Evolution Series
150 PSI Black Petroleum S & D Hose
GENERAL APPLICATIONS
- For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content

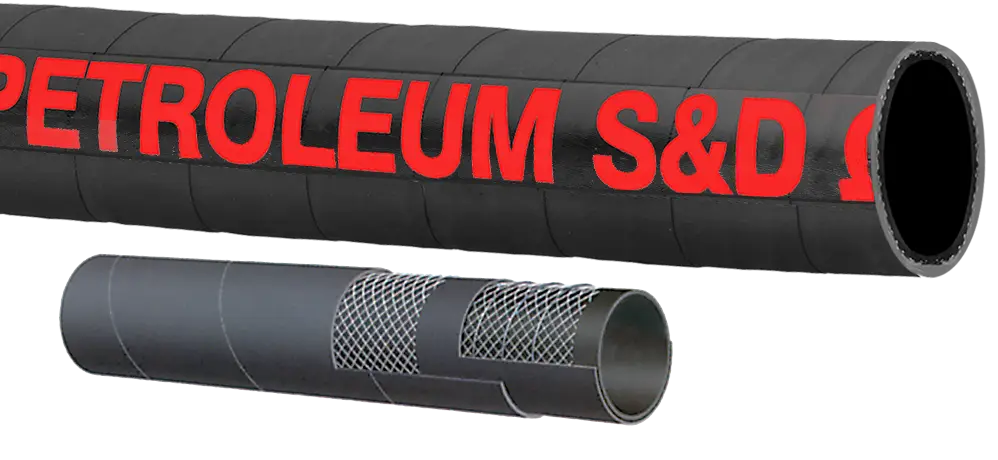

CONSTRUCTION
- Tube – Black conductive NBR
- Reinforcement – High tensile textile spiral cords with flexible steel helix wire
- Cover – Black CR – abrasion, ozone and hydrocarbon resistant
NOTE: Exceeds SAE100R4
WORKING PRESSURE
Constant Pressure – 10 Bar (150 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +200°F (+93°C)
BRANDING
ALFAGOMMA – ITALY 605 EVOLUTION– 10 BAR (150 PSI) PETROLEUM – S & D Ω - SAE 100R4 (in red letters)
- Not recommended for use on a reel
- Not recommended for gasohol/high additives
- Diesel #1 or #2 are approved for use
| Series Number | ID | OD | Max. Working Pressure (psi) |
Vacuum Rating Hg (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) |
Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T605AA075 | 3/4 | 19 | 1.18 | 30 | 150 | 30 | 1.5 | 100 | 0.40 |
| T605AA100 | 1 | 25 | 1.42 | 36 | 150 | 30 | 2 | 100 | 0.50 |
| T605AA125 | 1 1/4 | 32 | 1.69 | 43 | 150 | 30 | 2.5 | 100 | 0.60 |
| T605AA150 | 1 1/2 | 38 | 1.93 | 49 | 150 | 30 | 3 | 100 | 0.70 |
| T605AA200 | 2 | 51 | 2.44 | 62 | 150 | 30 | 4 | 100 | 0.91 |
| T605AA250 | 2 1/2 | 63 | 2.99 | 76 | 150 | 30 | 7.5 | 100 | 1.40 |
| T605AA300 | 3 | 76 | 3.50 | 89 | 150 | 30 | 9 | 100 | 1.59 |
| T605AA400 | 4 | 102 | 4.57 | 116 | 150 | 30 | 12 | 100 | 2.29 |
| T605AA600 | 6 | 152 | 6.69 | 170 | 150 | 25 | 24 | 20/100 | 4.86 |
| T605AA800 | 8 | 203 | 8.86 | 225 | 150 | 25 | 32 | 20 | 7.74 |
COUPLING SUGGESTIONS: Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
