Alfagomma
T605AH Series
150 PSI Red Petroleum S & D Hose
GENERAL APPLICATIONS
- For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content

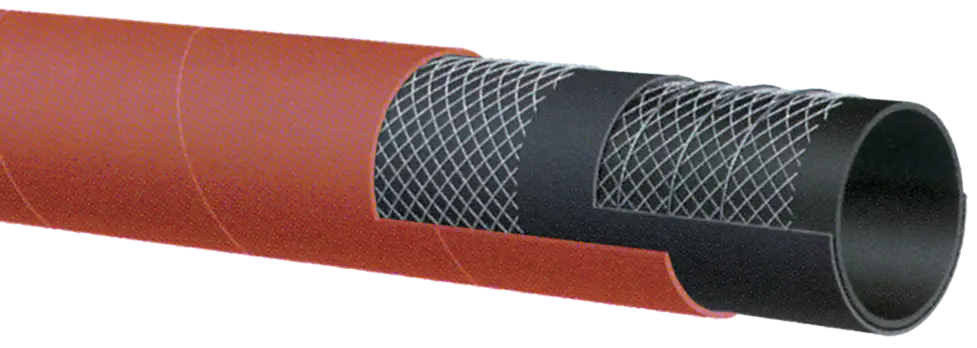

CONSTRUCTION
- Tube – Black conductive NBR
- Reinforcement – High tensile textile cords with flexible steel helix wire
- Cover – Red CR – abrasion, ozone and hydrocarbon resistant
WORKING PRESSURE
Constant Pressure – 10 Bar (50 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY T605 – 10 BAR (150 PSI) PETROLEUM – S & D (in yellow letters)
- T605 is not recommended for use on a reel.
| Part Number | ID | OD | Max Rec. WP (psi) |
Vacuum Hg (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T605AH150 | 1 1/2 | 38 | 1.89 | 48 | 150 | 30 | 6 | 100 | 0.73 |
| T605AH200 | 2 | 51 | 2.40 | 61 | 150 | 30 | 8 | 100 | 0.94 |
| T605AH300 | 3 | 76 | 3.46 | 88 | 150 | 27 | 12 | 100 | 1.74 |
| T605AH400 | 4 | 102 | 4.57 | 116 | 150 | 27 | 16 | 100 | 2.41 |
COUPLING SUGGESTIONS: Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
