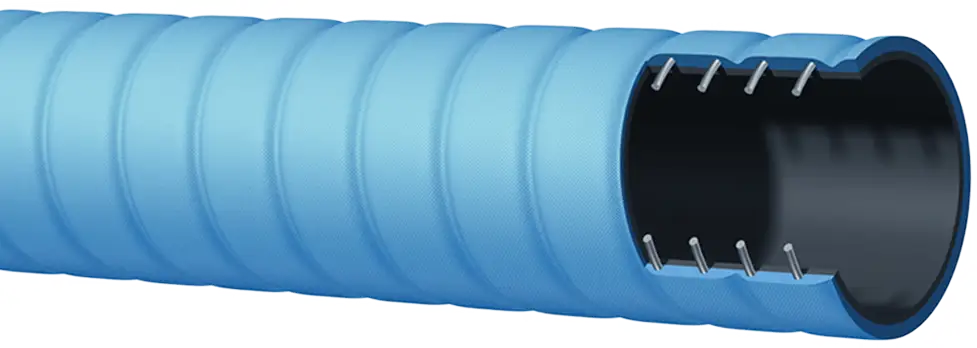

T606AE Series
150 PSI Corrugated Petroleum S & D – Arctic Hose
GENERAL APPLICATIONS
- For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content.
- Extremely flexible in low temperatures
CONSTRUCTION
- Tube – Black conductive NBR
- Reinforcement – High tensile textile cords with flexible steel helix wire
- Cover – Blue corrugated – abrasion, ozone and hydrocarbon resistant
WORKING PRESSURE
Constant Pressure – 150 PSI
SERVICE TEMPERATURE RANGE
-65°F (-54°C) to +180°F (+82°C)
BRANDING
ALFAGOMMA – ITALY T606 – 10 BAR (150 PSI) PETROLEUM – S & D Arctic (in blue letters on yellow layline)
| Part Number | ID | OD | Max Rec. WP (psi) |
Vacuum Hg (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T606AE200 | 2 | 51 | 2.48 | 63 | 150 | 30 | 3 | 100 | 1.06 |
| T606AE300 | 3 | 76 | 3.54 | 90 | 150 | 30 | 4 1/2 | 100 | 1.84 |
| T606AE400 | 4 | 102 | 4.57 | 116 | 150 | 30 | 6 | 100 | 2.67 |
COUPLING SUGGESTIONS: Quick-Acting, combination nipples attached with bands or internally expanded brass couplings with gasket seal attached with ferrules.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
