T614AA Series
150 PSI Hot Tar & Asphalt S & D Hose
GENERAL APPLICATIONS
- Hot tar and asphalt suction and discharge service

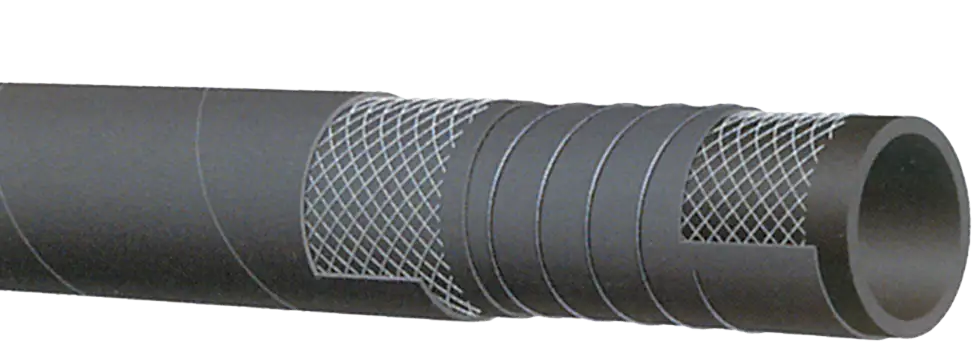

CONSTRUCTION
- Tube – Black NBR – hot tar and asphalt resistant
- Reinforcement – High tensile textile cords with steel helix wire
- Cover – Black CSM – abrasion, ozone and hot tar resistant
WORKING PRESSURE
Constant Pressure – 10 Bar (150 PSI)
SERVICE TEMPERATURE RANGE
-4°F (-20°C) to +356°F (+180°C)
BRANDING
ALFAGOMMA – ITALY T614 10 BAR (150 PSI) HOT TAR AND ASPHALT (on red stripe)
| Part Number | ID | OD | Wall Thickness (mm) |
Max Rec. WP (psi) |
Vacuum Hg (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | |||||||
| T614AA200 | 2 | 51 | 2.72 | 69 | 9 | 150 | 30 | 10 | 100 | 1.64 |
| T614AA300 | 3 | 76 | 3.78 | 96 | 10 | 150 | 27 | 15 | 100 | 2.69 |
| T614AA400 | 4 | 102 | 4.80 | 122 | 10 | 150 | 27 | 20 | 100 | 3.57 |
COUPLING SUGGESTIONS: Permanently attached couplings are suggested for assemblies.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
