Alfagomma
T629AA Series
150 PSI Black Biofuel Petroleum S & D Hose
GENERAL APPLICATIONS
- For suction and discharge applications in truck and tank car transfer of gasoline, oil and Biofuels – up to E98 and B100* with up to 60% aromatic content at ambient temperature
*Applies to Biodiesels which meet the ASTM D6751 criteria.

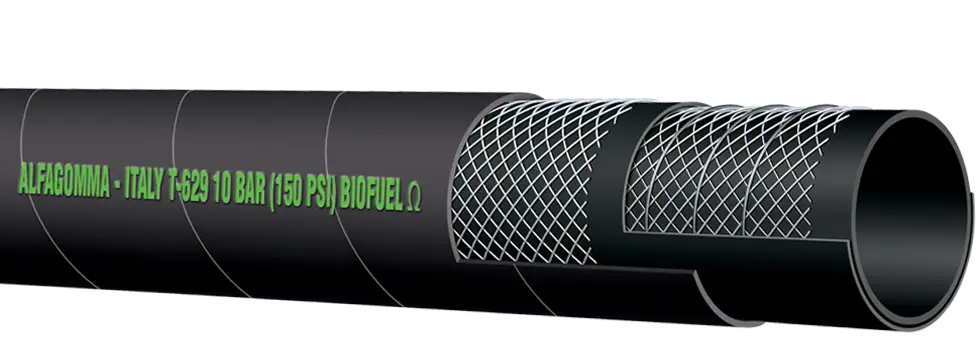

CONSTRUCTION
- Tube – Black conductive synthetic rubber
- Reinforcement – High tensile textile cords with steel helix wire
- Cover – Black specially-blended neoprene – added resistance against abrasion, ozone and hydrocarbons
WORKING PRESSURE
Constant Pressure – 10 Bar (150 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY T629 – 10 BAR (150 PSI) BIOFUEL Ω (in green letters)
- T629 is not recommended for use on a reel.
| Part Number | ID | OD | Max Rec. WP (psi) |
Vacuum Hg (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T629AA075 | 3/4 | 19 | 1.14 | 29 | 150 | 30 | 3 | 100 | 0.41 |
| T629AA100 | 1 | 25 | 1.38 | 35 | 150 | 30 | 4 | 100 | 0.51 |
| T629AA150 | 1 1/2 | 38 | 1.89 | 48 | 150 | 30 | 6 | 100 | 0.71 |
| T629AA200 | 2 | 51 | 2.40 | 61 | 150 | 30 | 8 | 100 | 0.91 |
| T629AA250 | 2 1/2 | 63 | 2.95 | 75 | 150 | 27 | 10 | 100 | 1.42 |
| T629AA300 | 3 | 76 | 3.46 | 88 | 150 | 27 | 12 | 100 | 1.71 |
| T629AA400 | 4 | 102 | 4.57 | 116 | 150 | 27 | 16 | 100 | 2.38 |
COUPLING SUGGESTIONS: Quick-Acting or combination nipples attached with bands.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
