Alfagomma
T631AE Series
300 PSI Hydrocarbon Drain Hose
GENERAL APPLICATIONS
- Drain hose for residue from cleaning storage tanks and refining hydrocarbons

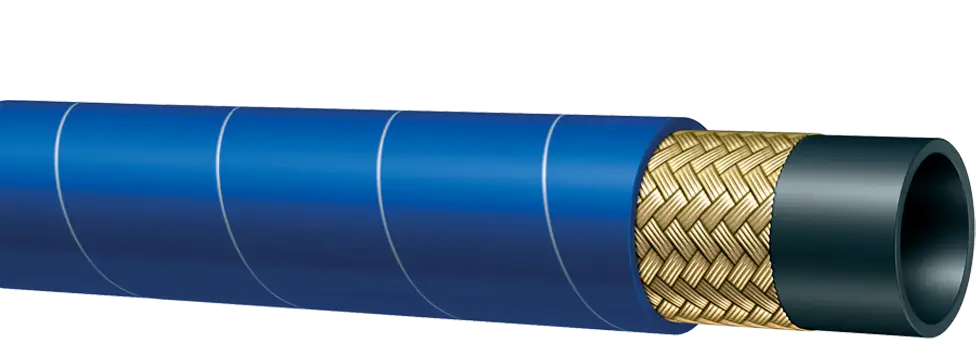

CONSTRUCTION
- Tube – Black NBR-hydrocarbon resistant
- Reinforcement – High tensile steel wire braids
- Cover – Blue CR – abrasion and hydrocarbon resistant
WORKING PRESSURE
Constant Pressure - 20 Bar (300 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +356°F (+180°C)
BRANDING
ALFAGOMMA 631-HYDROCARBON DRAIN HOSE-300 PSI (in blue letters on green layline)
| Series Number | ID | OD | Wall Thickness (mm) |
Max. Working Pressure (psi) |
Min. Bending Radius (in) |
Standard Length (ft) |
Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T631AE075 | 3/4 | 19 | 1.26 | 32 | 6 | 300 | 3 | 50/100 | 0.50 |
COUPLING SUGGESTIONS: Permanently attached couplings are suggested for assemblies.
