Alfagomma
T146AK Series
1000 PSI Braided MSHA Mine Spray Hose
GENERAL APPLICATIONS
Underground mine water spray for dust control. Also usable on continuous mining machinery

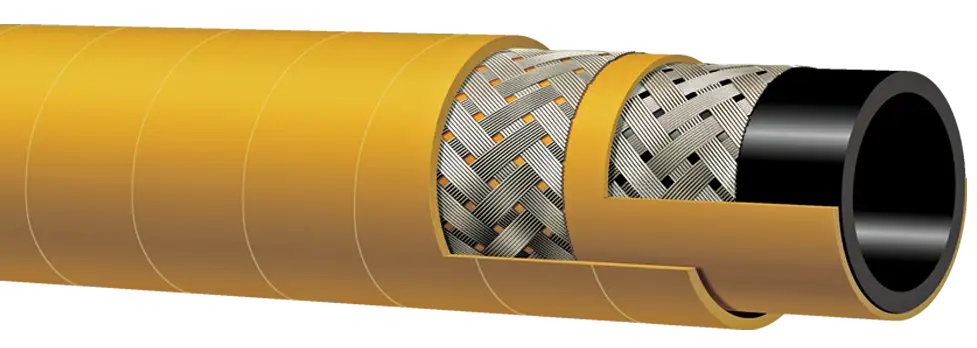

CONSTRUCTION
- Tube – Black Extruded SBR/NBR blend – oil mist resistant
- Reinforcement – High tensile steel wire braids
- Cover – Yellow SBR/NBR blend – abrasion, ozone, hydrocarbon and fire resistant – pin pricked
WORKING PRESSURE
Constant Pressure – 70 BAR (1000 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +200°F (+90°C)
BRANDING
ALFAGOMMA – ITALY – 70 BAR (1000 PSI) MINE SPRAY MSHA IC – 152/6 (embossed)
| Part Number | ID | OD | Max Rec. WP (psi) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) |
Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | |||||
| T146AK075 | 3/4 | 19 | 1.10 | 28 | 1000 | 3 3/4 | 50/100 | 0.45 |
| T146AK100 | 1 | 25 | 1.34 | 34 | 1000 | 5 | 50/100 | 0.58 |
| T146AK125 | 1 1/4 | 32 | 1.61 | 41 | 1000 | 6 1/4 | 50/100 | 0.75 |
| T146AK150 | 1 1/2 | 38 | 1.93 | 49 | 1000 | 7 1/2 | 50/100 | 1.08 |
| T146AK200 | 2 | 51 | 2.48 | 63 | 1000 | 10 | 50/100 | 1.47 |
COUPLING SUGGESTIONS: Permanently attached crimped hydraulic couplings.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
