Alfagomma

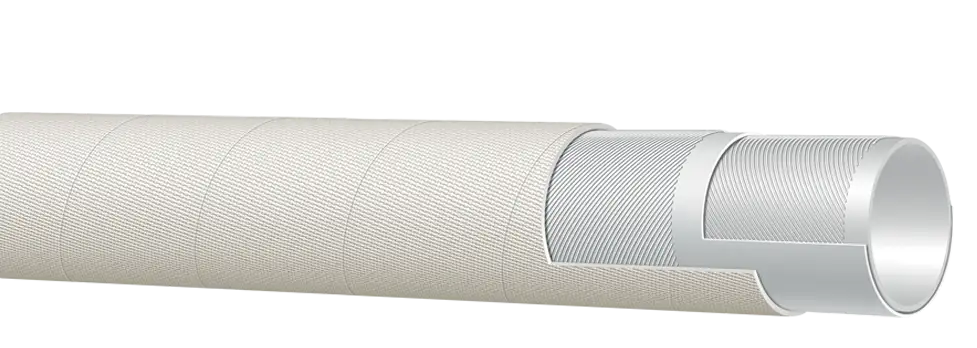

T957LL Series
300 PSI Furnace Door Coolant Hose
GENERAL APPLICATIONS
- To convey cooling water to furnace doors in steel mills, glass plants, foundries, or where the hose is subjected to high temperatures and splashes of white-hot molten metals or glass
CONSTRUCTION
- Tube – White EPDM
- Reinforcement – High tensile textile cords
- Cover – Beige EPDM – heat resistant, non-conductive resin-coated dust-free fiberglass cover
WORKING PRESSURE
Constant Pressure - 20 BAR (300 PSI)
SERVICE TEMPERATURE RANGE
Tube: -40°F (-40°C) to +248°F (+120°C)
Cover: -40°F (-40°C) to +1000°F (up to +540°C)
| Part Number | ID | OD | Max Rec. WP (psi) |
Standard Length (ft) | Weight (lbs/ft) |
|||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | |||||
| T957LL050 | 1/2 | 13 | 0.98 | 25 | 300 | 100 | 0.30 | |
| T957LL075 | 3/4 | 19 | 1.22 | 31 | 300 | 100 | 0.46 | |
| T957LL100 | 1 | 25 | 1.46 | 37 | 300 | 100 | 0.56 | |
| T957LL125 | 1 1/4 | 32 | 1.81 | 46 | 300 | 100 | 0.82 | |
| T957LL150 | 1 1/2 | 38 | 2.13 | 54 | 300 | 100 | 0.98 | |
| T957LL200 | 2 | 51 | 2.64 | 67 | 300 | 100 | 1.26 | |
| T957LL250 | 2 1/2 | 63 | 3.19 | 81 | 300 | 100 | 1.55 | |
| T957LL300 | 3 | 76 | 3.78 | 96 | 300 | 100 | 2.15 | |
Special order, minimums required. Contact your nearest KOA warehouse location for more information.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
