Alfagomma
T223AA Evolution Series
Heavy Duty S & D Hose
GENERAL APPLICATIONS
Heavy duty water suction and discharge applications for irrigation, agriculture, mining and construction. Designed for long service life in heavy duty applications for water suction and delivery service

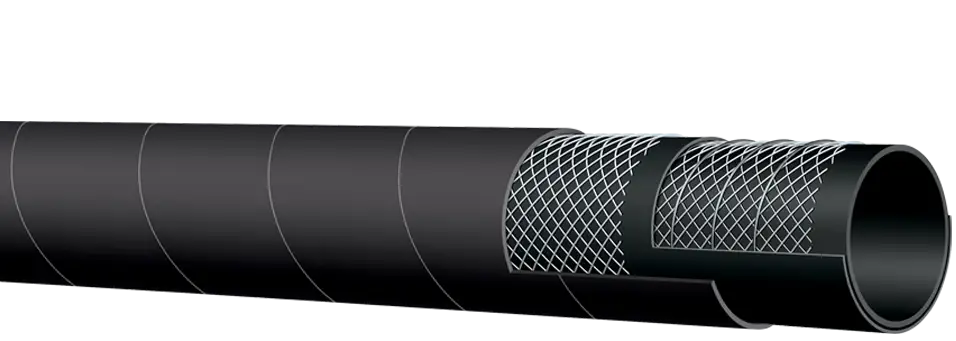

CONSTRUCTION
- Tube – Black conductive EPDM
- Reinforcement – Spiraled high tensile textile cords with flexible steel helix wire
- Cover – Black conductive EPDM – abrasion and ozone resistant
WORKING PRESSURE
Constant Pressure – 20 Bar (300 PSI)
SERVICE TEMPERATURE RANGE
-40°F (-40°C) to +212°F (+100°C)*
*Actual service temperature range is application dependent.
BRANDING
ALFAGOMMA – ITALY – T903 10 BAR (150 PSI) – HOT AIR SERVICE – FDA (in white letters).
| Part Number | ID | OD | Max Rec. WP (psi) |
Vacuum HG (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T223AA100 | 1 | 25 | 1.42 | 36 | 150 | 30 | 2 | 100 | 0.48 |
| T223AA125 | 1 1/4 | 32 | 1.69 | 43 | 150 | 30 | 2.5 | 100 | 0.58 |
| T223AA150 | 1 1/2 | 38 | 1.93 | 49 | 150 | 30 | 3 | 100 | 0.68 |
| T223AA200 | 2 | 51 | 2.44 | 62 | 150 | 30 | 4 | 100 | 0.88 |
| T223AA250 | 2 1/2 | 63 | 2.99 | 76 | 150 | 30 | 7.5 | 100 | 1.36 |
| T223AA300 | 3 | 76 | 3.50 | 89 | 150 | 30 | 9 | 100 | 1.61 |
| T223AA350 | 3 1/2 | 90 | 4.02 | 102 | 150 | 30 | 10.5 | 100 | 1.82 |
| T223AA400 | 4 | 102 | 4.57 | 116 | 150 | 30 | 12 | 100 | 2.22 |
| T223AA500 | 5 | 127 | 5.55 | 141 | 150 | 25 | 18 | 20/50 | 3.18 |
| T223AA600 | 6 | 152 | 6.61 | 168 | 150 | 25 | 24 | 20/25/50/100 | 3.59 |
| T223AA800 | 8 | 203 | 8.70 | 221 | 150 | 25 | 32 | 20/25 | 6.64 |
| T223AA1000 | 10 | 254 | 10.71 | 272 | 150 | 25 | 50 | 20 | 9.09 |
| T223AA1200 | 12 | 305 | 12.87 | 327 | 150 | 25 | 61 | 20 | 12.54 |
COUPLING SUGGESTIONS: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
