Products Kuri Tec Reinforced Air & Water Hoses K1131 Series / K1134 Series / K1136 Series / K1137 Series / K1138 Series
Kuri Tec
POLYAIR®

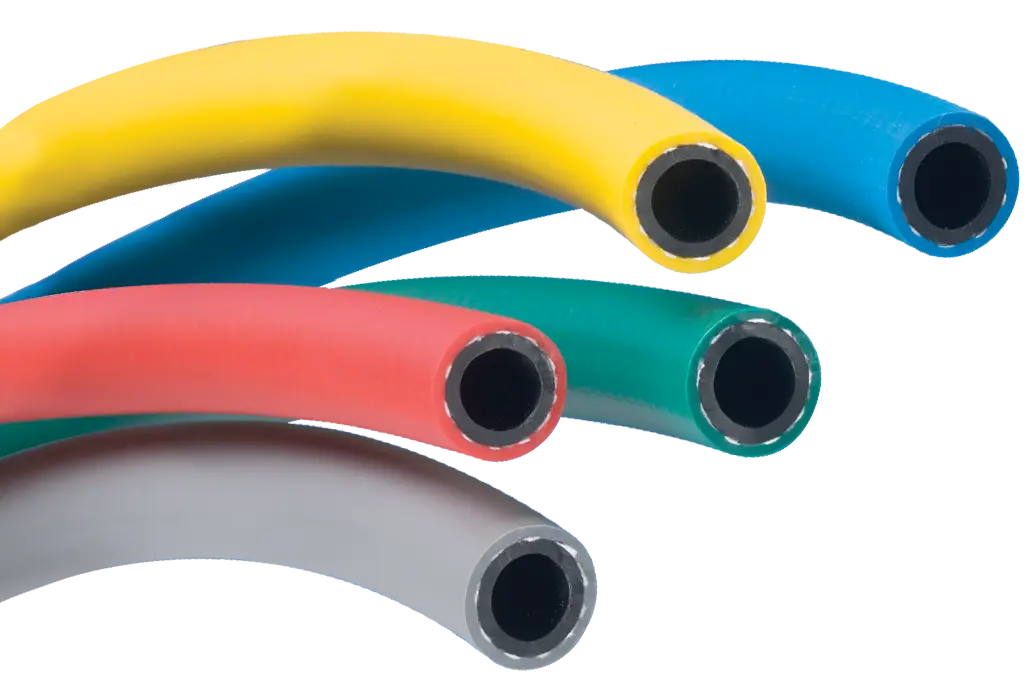

K1131 Series / K1134 Series / K1136 Series / K1137 Series / K1138 Series
Low Temperature PVC Air & Water Hose
GENERAL APPLICATIONS
- General air supply line for pneumatic tools and paint spray systems
- Ideal for in-plant applications requiring color coding of hose supply lines
- Low pressure spray hose for water-soluble chemicals
- Outdoor applications requiring a low temperature hose
- Transfer of air, water and mild water-soluble chemicals
CONSTRUCTION
- Tube – Black phthalate free PVC
- Reinforcement – Spiral polyester yarn with additional longitudinal yarns
- Cover – Phthalate free PVC. Available in five colors: K1131 (Yellow), K1134 (Red), K1136 (Blue), K1137(Green), K1138 (Gray)
SERVICE TEMPERATURE RANGE
-40°F (-40°C) to +150°F (+65°C)
FEATURES AND ADVANTAGES
- Cold Flex Materials – Remains flexible and easy to handle in sub-zero temperatures to -40˚F (-40˚C).
- Rubber Alternative – PVC hose with the look and feel of rubber.
- UV and Weather Resistant – Opaque cover resists damage from UV light and weather aging.
- Abrasion Resistant PVC – Durable PVC holds up better than rubber air hoses when dragged.
- Medium Oil Resistance – Meets ARPM Class B rating for medium oil resistance. Remains flexible when exposed to oils. Won’t dry out or crack like other PVC hoses.
- Lightweight – Lighter weight reduces worker fatigue.
- Perforated, Non-Marking Cover – Can be dragged over flooring without leaving marks typical of rubber hoses.
- Longitudinal Reinforcement – Additional longitudinal yarns reduce elongation and improve coupling retention.
| Series Number | Size Code |
ID | OD | Max. Working Pressure† (psi) |
Standard Length (ft) |
Weight per Pkg. (lbs) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K1134 Red | K1131 Yellow |
K1136 Blue |
K1138 Gray |
K1137 Green |
(in) | (mm) | (in) | (mm) | at 70°F (20°C) | at 122°F (50°C) | Reel | Coil | Reel | Coil | |
 |
|
|
|
04 | 1/4 | 6.5 | 0.500 | 12.7 | 300 | 180 | 500 | 100 | 44 | 8 | |
|
05 | 5/16 | 8.0 | 0.625 | 15.9 | 300 | 180 | 500 | 100 | 67 | 13 | ||||
|
|
|
|
|
06 | 3/8 | 9.5 | 0.625 | 15.9 | 300 | 180 | 500 | 100 | 58 | 11 |
|
|
|
|
08 | 1/2 | 12.7 | 0.813 | 20.7 | 300 | 180 | 500 | 100 | 93 | 18 | |
|
10 | 5/8 | 15.9 | 0.906 | 23.0 | 250 | 125 | 300 | 100 | 64 | 19 | ||||
|
|
|
|
12 | 3/4 | 19.0 | 1.125 | 28.6 | 250 | 100 | 300 | 100 | 96 | 30 | |
|
|
|
|
16 | 1 | 25.4 | 1.406 | 35.7 | 250 | 100 | 300 | 100 | 130 | 41 | |
NOTES:
† Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
COMPLIANCES (click here for details)
Phthalate Free (13), RoHS (14)
