KuriCrimp powered by o+p
Marking Dies

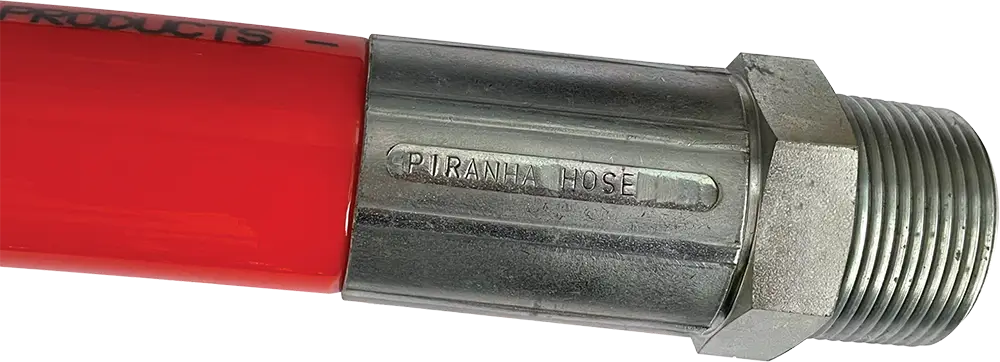

- Imprints your own custom message, logo, or date code on the ferrule during the crimping process.
- Purchase your own custom set of letters, numbers, symbols and spacer blocks; which can be arranged and rearranged in any manner to create various branding messages or date codes for hose traceability.
- Used in conjunction with standard die set for that size, and replaces one of the eight standard die segments with marking die segment.
- Marking varies in height from 1.5 mm to 4 mm, and in length from 10 to 15 characters, depending on die size.
- For use with KC1-H130, KC3-H130, KC1-H135, KC3-H135, KC3-H144 and KC3-H170 Series Crimpers.
- Also available for KC1-H83, KC3-H88 and all KC4 Series crimpers. Contact Kuriyama Customer Service for details.
KCHAR Series
Character Blocks
Available in a wide variety of letters, numbers and symbols, character blocks can be arranged in various ways within the hollowed out marking die segment.
Individual Character Blocks
| Part Number | Die Sizes (mm) | Character Height (mm) |
|---|---|---|
| KCHAR1.5MM | 12 & 14 | 1.5 |
| KCHAR2MM | 16, 19, 22, 25 & 29 | 2.0 |
| KCHAR3MM | 34, 38, 42, 46, 50, 54, 58, 63, 69 & 73 | 3.0 |
| KCHAR4MM | 103, 106, 111, 116, 121, 126 & 131 | 4.0 |

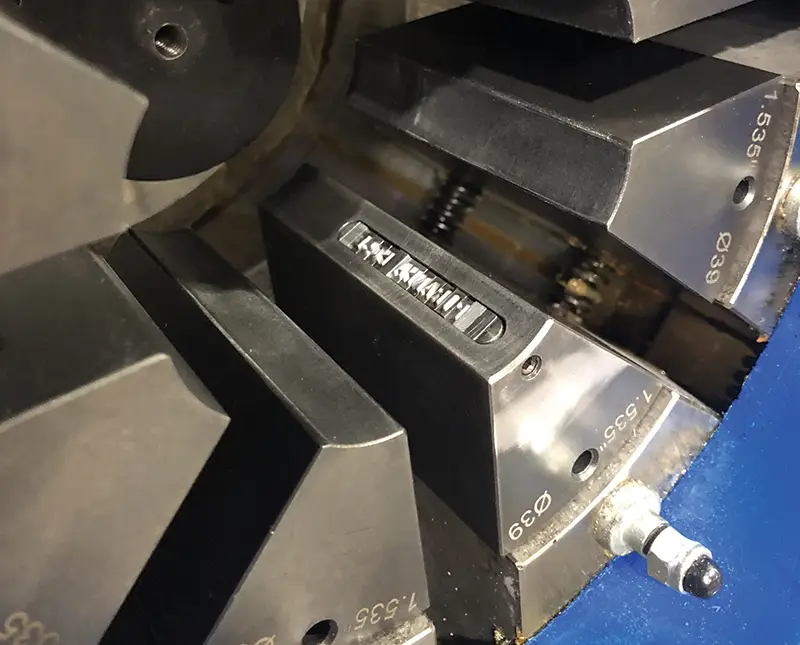

Marking Die Segments replace one of the eight standard die segments for that particular size (crimp diameter).
KCMARKH Series
Marking Die Segments
Used in conjunction with the standard die set for that size, marking die segments replace one of the eight standard die segments with one to which character blocks can be added in order to imprint on the ferrule.
For KC1-H130, KC3-H130, KC1-H135, KC3-H135, KC3-H144 and KC3-H170 Series Crimpers
| Part Number | Crimp Range (mm) | Closed Diameter (mm) | Length (mm) | Weight (lbs/ea) | Available Character Spaces | Individual Character Blocks Part Number |
|---|---|---|---|---|---|---|
| KCMARKH119-12 | 12.0 - 14.0 | 12 | 60 | 1.5 | 10 | KCHAR1.5MM |
| KCMARKH119-14 | 14.0 - 16.0 | 14 | 60 | 1.5 | 10 | KCHAR1.5MM |
| KCMARKH119-16 | 16.0 - 19.0 | 16 | 60 | 1.5 | 15 | KCHAR2MM |
| KCMARKH119-19 | 19.0 - 22.0 | 19 | 60 | 1.5 | 15 | KCHAR2MM |
| KCMARKH119-22 | 22.0 - 25.0 | 22 | 60 | 1.5 | 15 | KCHAR2MM |
| KCMARKH119-25 | 25.0 - 29.0 | 25 | 60 | 1.5 | 15 | KCHAR2MM |
| KCMARKH119-29 | 29.0 - 34.0 | 29 | 70 | 1.5 | 15 | KCHAR2MM |
| KCMARKH119-34 | 34.0 - 38.0 | 34 | 70 | 1.5 | 15 | KCHAR3MM |
| KCMARKH119-38 | 38.0 - 42.0 | 38 | 85 | 1.5 | 15 | KCHAR3MM |
| KCMARKH119-42 | 42.0 - 46.0 | 42 | 85 | 1.9 | 15 | KCHAR3MM |
| KCMARKH119-46 | 46.0 - 50.0 | 46 | 95 | 1.9 | 15 | KCHAR3MM |
| KCMARKH119-50 | 50.0 - 54.0 | 50 | 95 | 1.9 | 15 | KCHAR3MM |
| KCMARKH119-54 | 54.0 - 58.0 | 54 | 110 | 1.9 | 15 | KCHAR3MM |
| KCMARKH119-58 | 58.0 - 63.0 | 58 | 95 | 1.9 | 15 | KCHAR3MM |
| KCMARKH119-63 | 63.0 - 69.0 | 63 | 120 | 1.9 | 15 | KCHAR3MM |
| KCMARKH119-69 | 69.0 - 73.0 | 69 | 100 | 1.8 | 15 | KCHAR3MM |
| KCMARKH119-73 | 73.0 - 77.0 | 73 | 120 | 1.5 | 15 | KCHAR3MM |
| KCMARKH119-77 | 77.0 - 86.0 | 77 | 120 | 1.5 | 15 | KCHAR3MM |
| KCMARKH119-86 | 86.0 - 90.0 | 86 | 120 | 1.5 | 15 | KCHAR3MM |
| KCMARKH119-90 | 90.0 - 96.0 | 90 | 150 | 1.5 | 15 | KCHAR3MM |
| KCMARKH119-96 | 96.0 - 103.0 | 96 | 120 | 1.5 | 15 | KCHAR3MM |
Additional Dies for KC3-H144 and KC3-H170 Series crimpers only
| Part Number | Crimp Range (mm) | Closed Diameter (mm) | Length (mm) | Weight (lbs/ea) | Available Character Spaces | Individual Character Blocks Part Number |
|---|---|---|---|---|---|---|
| KCMARKH144-103 | 103.0 - 106.0 | 103 | 130 | 1.5 | 12 | KCHAR4MM |
| KCMARKH144-106 | 106.0 - 111.0 | 106 | 130 | 1.5 | 12 | KCHAR4MM |
| KCMARKH144-111 | 111.0 - 116.0 | 111 | 130 | 1.5 | 12 | KCHAR4MM |
| KCMARKH144-116 | 116.0 - 121.0 | 116 | 130 | 1.5 | 12 | KCHAR4MM |
| KCMARKH144-121 | 121.0 - 126.0 | 121 | 130 | 1.5 | 12 | KCHAR4MM |
| KCMARKH144-126 | 126.0 - 131.0 | 126 | 130 | 1.5 | 12 | KCHAR4MM |
| KCMARKH144-131 | 131.0 - 144.0 | 131 | 130 | 1.5 | 12 | KCHAR4MM |
