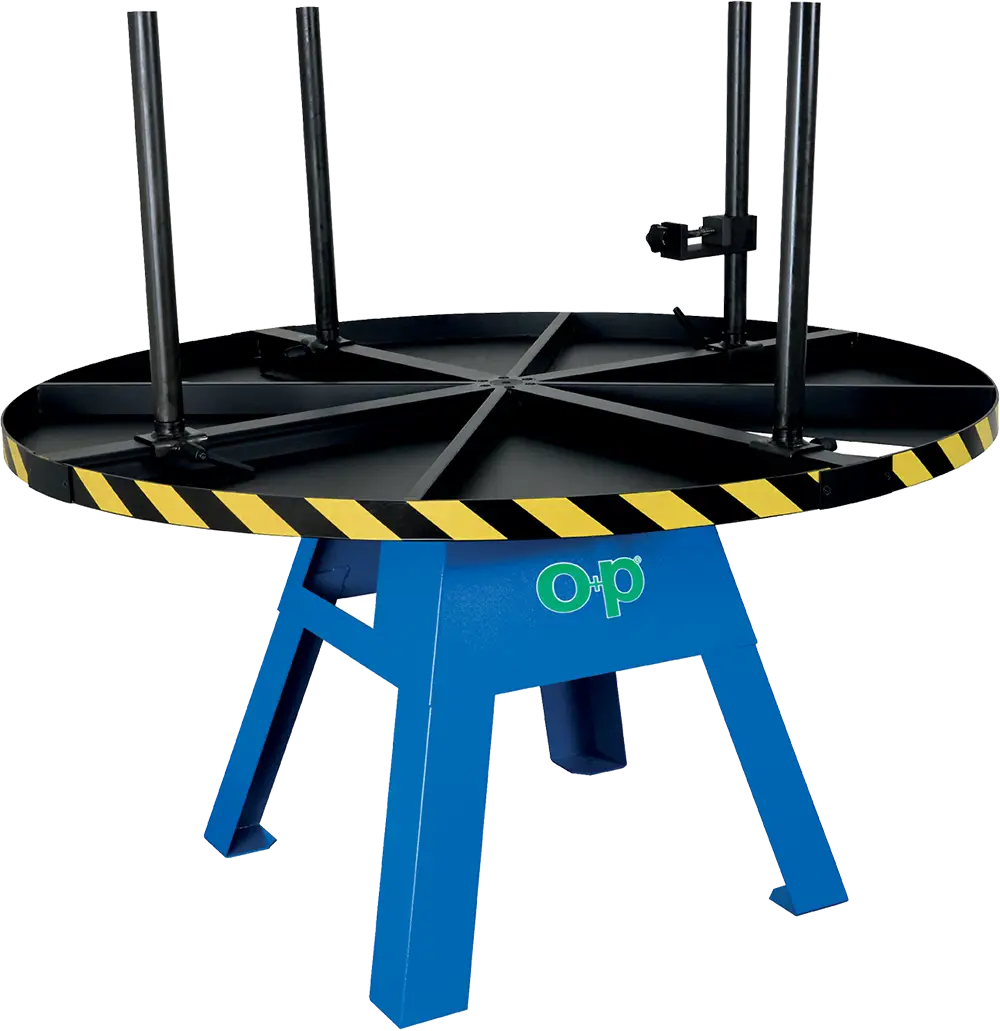

KCOIL1H-M
Manual Horizontal Hose Coiler
DESCRIPTION
A premium manually operated horizontal hose coiler with choice of hose holding table diameters. Optional roller and reel centering devices available.
| Specifications | |
|---|---|
| Max Load (lbs) | 530 |
| L x W x H (in) | 59 x 59 x 54.4 |
| Weight (lbs) | 132 |
| Hose Holder Diameter (in) | 39.3 OR 59 |

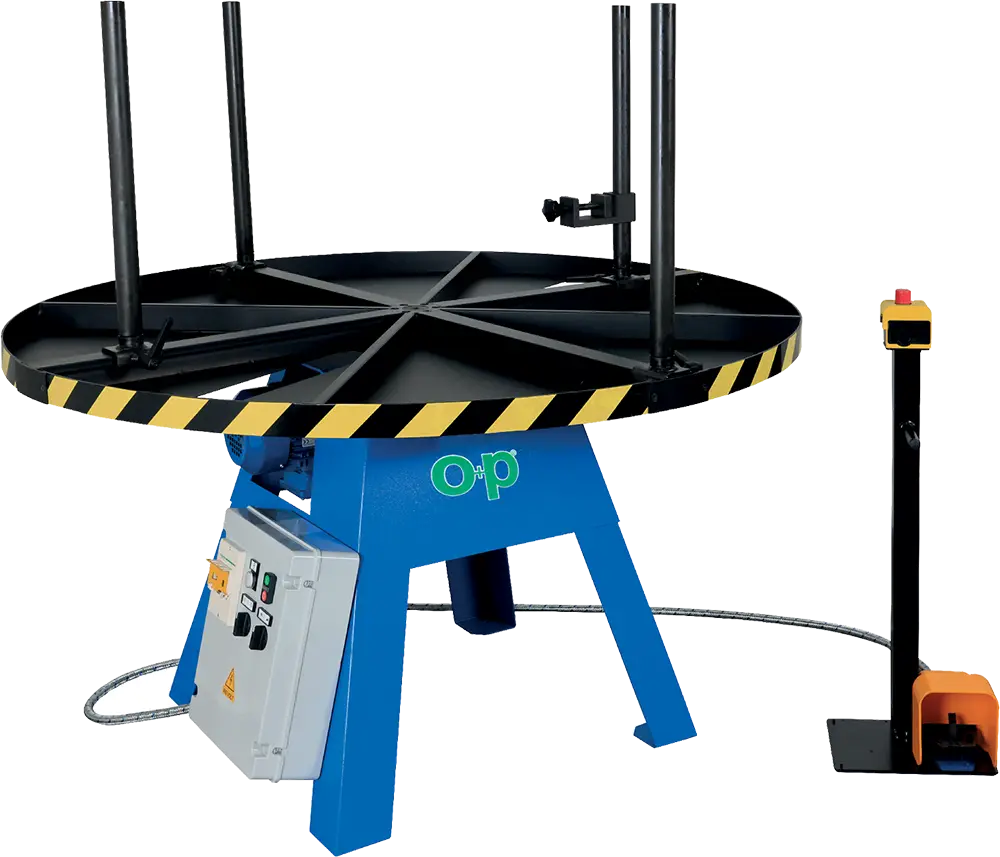

KCOIL1H-230/3
Electric Horizontal Hose Coiler
DESCRIPTION
A premium electrically operated horizontal hose coiler with choice of hose holding table diameters. Electric foot pedal included. Optional roller and reel centering devices available.
| Specifications | |
|---|---|
| Max Load (lbs) | 530 |
| L x W x H (in) | 59 x 59 x 54.4 |
| Weight (lbs) | 198 |
| Hose Holder Diameter (in) | 39.3 OR 59 |
| Motor Info | 0.9 HP (230V) 3 PH |

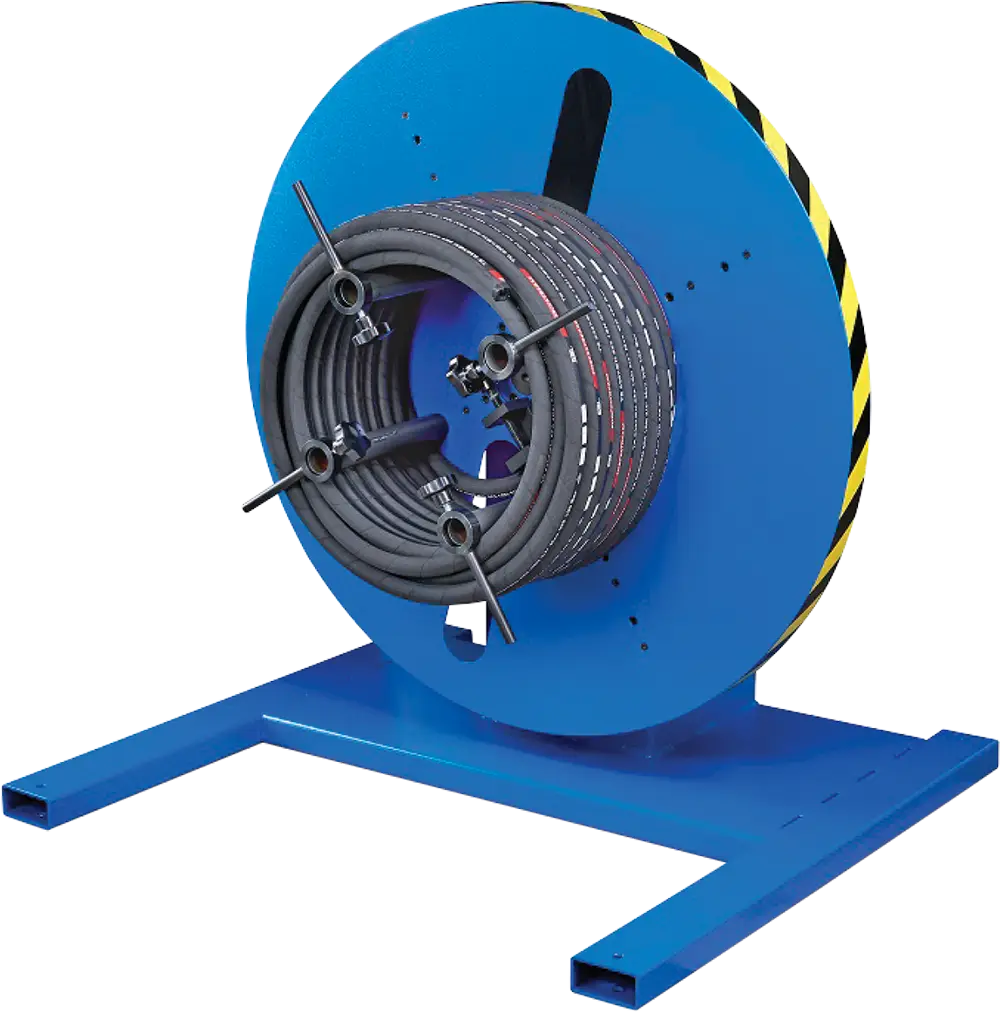

KCOIL1V-M
Vertical Manual Hose Coiler
DESCRIPTION
A premium manually operated vertical hose coiler.
Optional reel centering device available.
| Specifications | |
|---|---|
| Max Load (lbs) | 530 |
| L x W x H (in) | 43.3 x 39.3 x 45.4 |
| Weight (lbs) | 317 |
| Hose Holder Diameter (in) | 41.7 |

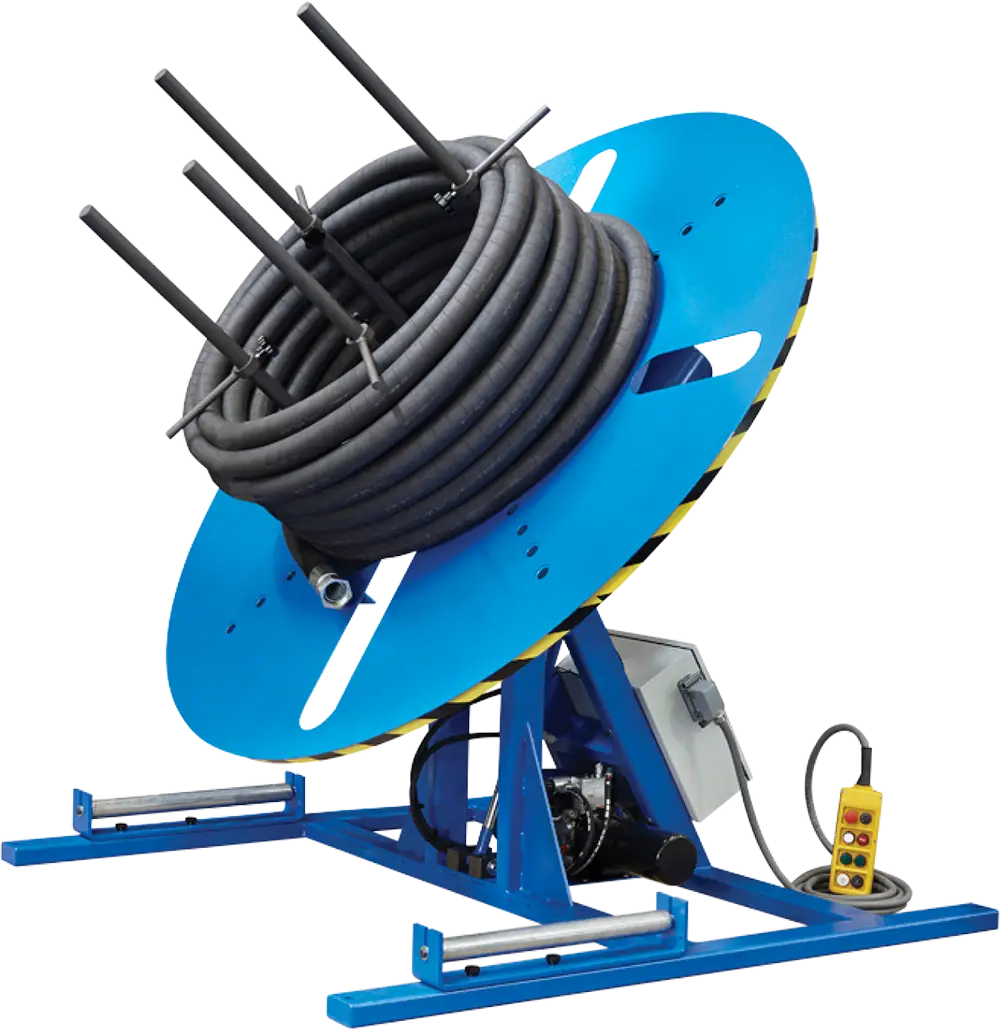

KCOIL2HV-230/3
Adjustable Electric Hose Coiler
DESCRIPTION
A premium and highly capable electrically operated adjustable horizontal to vertical hose coiler. Electric handheld control included. Optional reel centering device available.
| Specifications | |
|---|---|
| Max Load (lbs) | 1100 |
| L x W x H (in) | 80.7 x 80.7 x 82.2 |
| Weight (lbs) | 1100 |
| Hose Holder Diameter (in) | 77.1 |
| Maximum Hose ID (in) | 2 1/2 |
| Motor Info | 5 HP (230V) 3PH |

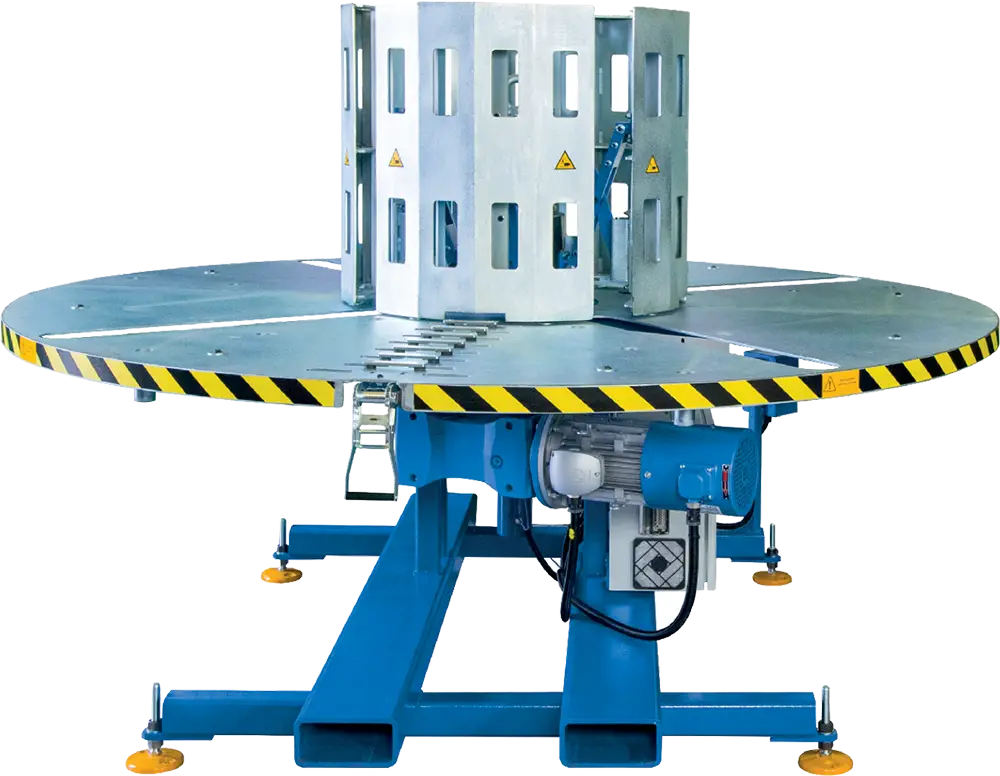

KCOIL3H-230/3
Horizontal Electric Hose Coiler
DESCRIPTION
A premium and highly capable electrically operated horizontal hose coiler. Electric handheld control included Ideal for coiling of larger diameter hoses.
| Specifications | |
|---|---|
| Max Load (lbs) | 2200 |
| L x W x H (in) | 96.1 x 96.1 x 68.2 |
| Weight (lbs) | 1100 |
| Hose Holder Diameter (in) | 96.1 |
| Maximum Hose ID (in) | 8 |
| Motor Info | 4 HP (230V) 3PH |
