INCLUDED ACCESSORIES
Enclosed Blade Chamber
Ventilation Port*
Serrated Blade†
BLADE-SER250
* Separate suction device required for fume extraction
† CAUTION: The included Serrated Blade is not recommended for use with hoses with a steel cover and/or containing steel helical reinforcement
OPTIONAL ACCESSORIES
Centering & Measuring Device
CENTER-KCS
Measuring Hose Tray
TRAY-KCS

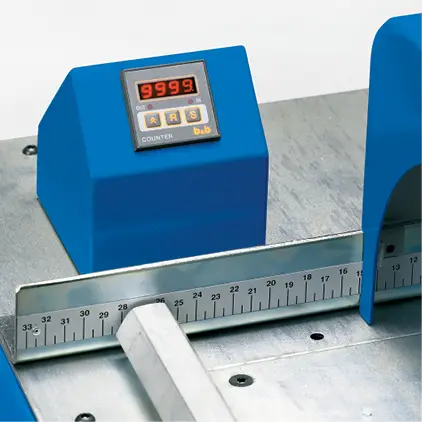

Stroke Counter
STROKE-KCS
Smooth Blade
BLADE-SMT250
Diamond Blade
BLADE-DIA250
KuriCrimp powered by o+p
KCS-TF3 Series
DESCRIPTION
A stand alone unit ideal for cutting 3" two wire hose and 2" six spiral hydraulic hose. The blade is recessed inside the base for additional safety.
Suggested for use with KC3-H135 series crimpers.
| Hose Capacity (in) | Motor Strength (HP) | |
|---|---|---|
| 1 – 2 Wire | 3 | 7.5 |
| 4 SP / 6 SP | 2 1/2 / 2 | |
| Industrial | 2 1/2 | |
| Max opening (mm) | 100 | |
| Cutter Size | |
|---|---|
| L x W x H (in) | 39.4 x 28.0 x 45.3 |
| Weight (lbs) | 419 |
| Blade Diameter (mm) | 400 |
| Part Number | Motor Info |
|---|---|
| KCS-TF3-230/3 | 7.5 HP (230 V) 3 PH |
