INCLUDED ACCESSORIES
Recessed Blade Chamber
Ventilation Port*
Pneumatic Foot Pedal
Stroke Counter
Serrated Blade†
BLADE-SER400
* Separate suction device required for fume extraction
† CAUTION: The included Serrated Blade is not recommended for use with hoses with a steel cover and/or containing steel helical reinforcement
OPTIONAL ACCESSORIES
Centering & Measuring Device
CENTER-KCS
Measuring Hose Tray
TRAY-KCS
Blowing Kit BLKIT-KCS45
Fume Extractor FUME-KCS4
Smooth Blade
BLADE-SMT400
Diamond Blade
BLADE-DIA400

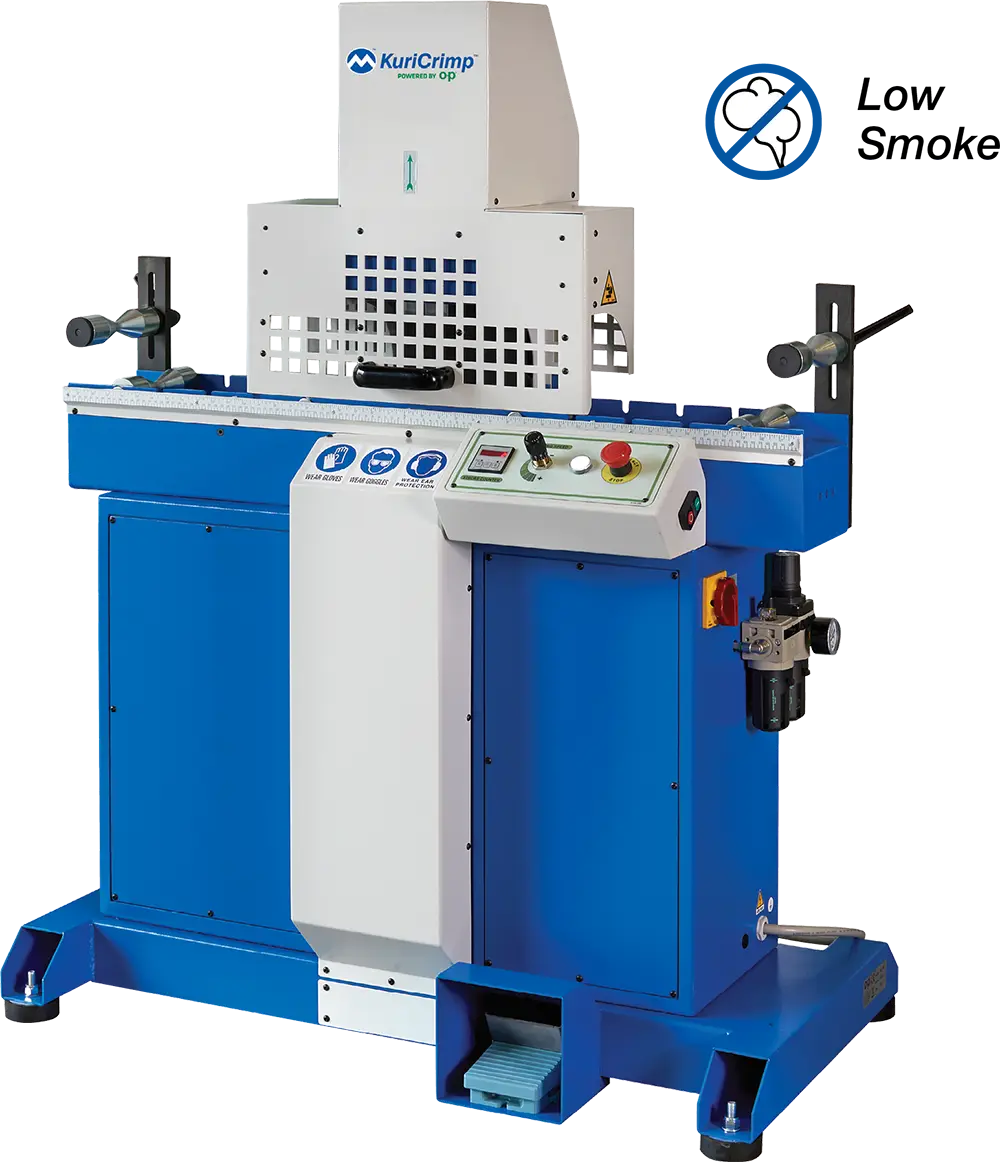

KuriCrimp powered by o+p
KCS-TF4 Series
DESCRIPTION
A stand alone unit that can cut up to 2" six spiral hoses. Blade chamber is completely recessed in the body of the unit allowing for more efficient ventilation. Uses 100 PSI pneumatic input.
Suggested for use with KC4-V150 and KC4-V159 series crimpers.
| Hose Capacity (in) | Motor Strength (HP) | |
|---|---|---|
| 1 – 2 Wire | 3 | 7.5 |
| 4 SP / 6 SP | 2 1/2 / 2 | |
| Industrial | 3 | |
| Max opening (mm) | 100 | |
| Cutter Size | |
|---|---|
| L x W x H (in) | 44.0 x 23.8 x 57.2 |
| Weight (lbs) | 717 |
| Blade Diameter (mm) | 400 |
| Part Number | Motor Info |
|---|---|
| KCS-TF4-230/3 | 7.5 HP (230 V) 3 PH |
