MULTICEN-MIN Multifunctional / Tube Processing Center
  • Bending iconBending
  • 37 degree Flaring icon37° Flaring
  • Deburring iconDeburring
  • Preassembly iconPreassembly

INCLUDED ACCESSORIES

  • Handheld Electronic ControlHandheld Electronic Control
  • Tool HolderTool Holder

KuriCrimpKuriCrimp powered by o+p

MULTICEN-MIN

Multifunctional / Tube Processing Center

DESCRIPTION

An economic, compact unit designed to carry out a multitude of the necessary functions for machining rigid hydraulic tubes, including bending, 24° ring preassembly, 37° flaring and deburring.

Tube Materials
Stainless (AISI 316 TI) or Carbon (ST37.4) Steel
Bending
Tube Diameter Range (in) 1/4 - 1 1/2
Tube Max. Width (in) 0.15
Max Bending Angle 170°
24° Preassembly
Tube Diameter Range (in) 0.236 - 1.654
Tube Max. Width (in) 0.15
37° Preassembly
Tube Diameter Range (in) 1/4 - 1 1/2
Tube Max. Width (in) 0.158
Deburring
Tube Max. Size (in) 1/4 - 1 1/2
Multicenter Size
L x W x H (in) 28.4 x 36.2 x 51.0
Weight (lbs) 454
Part Number Motor Info
MULTICEN-MIN-230/1 2.3 HP (230 V) 1 PH

Bending

Bending Examples

Bending Tools for MULTICEN-MIN and MULTICEN-JR

Part Number Description Tubing OD (in) Min. Bend Radius
(in)		 Max. Bend Angle (°) A
(mm)		 B
(mm)
BENDTOOL-JR-6 Bending Tool Ø 6 mm 6.0 15.0 170 60 70
BENDTOOL-JR-8 Bending Tool Ø 8 mm 8.0 16.5 170 60 70
BENDTOOL-JR-10 Bending Tool Ø 10 mm 10.0 27.5 170 70 115
BENDTOOL-JR-12 Bending Tool Ø 12 mm 12.0 32.5 170 80 120
BENDTOOL-JR-14 Bending Tool Ø 14 mm 14.0 46.0 170 110 180
BENDTOOL-JR-15 Bending Tool Ø 15 mm 15.0 46.0 170 110 180
BENDTOOL-JR-16 Bending Tool Ø 16 mm 16.0 48.0 170 110 180
BENDTOOL-JR-18 Bending Tool Ø 18 mm 18.0 48.0 170 110 190
BENDTOOL-JR-20 Bending Tool Ø 20 mm 20.0 66.0 170 140 230
BENDTOOL-JR-22 Bending Tool Ø 22 mm 22.0 66.0 160 140 240
BENDTOOL-JR-25 Bending Tool Ø 25 mm 25.0 81.5 160 170 270
BENDTOOL-JR-28 Bending Tool Ø 28 mm 28.0 81.0 160 180 300
BENDTOOL-JR-30 Bending Tool Ø 30 mm 30.0 98.5 150 220 300
BENDTOOL-JR-32 Bending Tool Ø 32 mm 32.0 101.0 150 220 300
BENDTOOL-JR-35 Bending Tool Ø 35 mm 35.0 125.5 120 250 440
BENDTOOL-JR-38 Bending Tool Ø 38 mm 38.0 116.0 120 250 440
BENDTOOL-JR-42 Bending Tool Ø 42 mm 42.0 126.0 120 250 440
Part Number Description Tubing OD (in) Min. Bend Radius
(in)		 Max. Bend Angle (°) A
(mm)		 B
(mm)
BENDTOOL-JR-1/4 Bending Tool Ø 1/4" 1/4 0.65 170 2.36 2.76
BENDTOOL-JR-3/8 Bending Tool Ø 3/8" 3/8 1.08 170 2.76 4.53
BENDTOOL-JR-1/2 Bending Tool Ø 1/2" 1/2 1.28 170 3.15 4.72
BENDTOOL-JR-5/8 Bending Tool Ø 5/8" 5/8 1.88 170 4.33 7.09
BENDTOOL-JR-3/4 Bending Tool Ø 3/4" 3/4 1.88 170 4.33 7.09
BENDTOOL-JR-1 Bending Tool Ø 1" 1 3.20 160 6.69 10.63
BENDTOOL-JR-1 1/4 Bending Tool Ø 1 1/4" 1 1/4 3.97 150 8.66 11.81
BENDTOOL-JR-1 1/2 Bending Tool Ø 1 1/2" 1 1/2 4.56 120 9.84 17.32

Preassembly

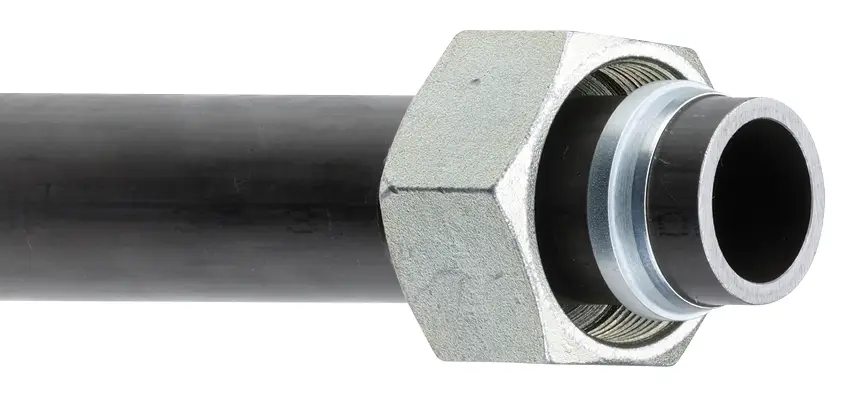

Preassembly Examples

Note: Metric Tube Nuts (MTN Series) and Bite Sleeves (MBS Series) available. Refer to Kuriyama Hydraulic Connections Catalog pgs. 214-216.

Preassembly Sockets for MULTICEN-MIN and MULTICEN-JR

Part Number Description Tubing OD (mm)
PRESOCK-JR-6L Light Preassembly Socket Ø 6 mm 6.0
PRESOCK-JR-6S Heavy Preassembly Socket Ø 6 mm 6.0
PRESOCK-JR-8L Light Preassembly Socket Ø 8 mm 8.0
PRESOCK-JR-8S Heavy Preassembly Socket Ø 8 mm 8.0
PRESOCK-JR-10L Light Preassembly Socket Ø 10 mm 10.0
PRESOCK-JR-10S Heavy Preassembly Socket Ø 10 mm 10.0
PRESOCK-JR-12L Light Preassembly Socket Ø 12 mm 12.0
PRESOCK-JR-12S Heavy Preassembly Socket Ø 12 mm 12.0
PRESOCK-JR-14S Heavy Preassembly Socket Ø 14 mm 14.0
PRESOCK-JR-15L Light Preassembly Socket Ø 15 mm 15.0
PRESOCK-JR-16S Heavy Preassembly Socket Ø 16 mm 16.0
PRESOCK-JR-18L Light Preassembly Socket Ø 18 mm 18.0
PRESOCK-JR-20S Heavy Preassembly Socket Ø 20 mm 20.0
PRESOCK-JR-22L Light Preassembly Socket Ø 22 mm 22.0
PRESOCK-JR-25S Heavy Preassembly Socket Ø 25 mm 25.0
PRESOCK-JR-28L Light Preassembly Socket Ø 28 mm 28.0
PRESOCK-JR-30S Heavy Preassembly Socket Ø 30 mm 30.0
PRESOCK-JR-35L Light Preassembly Socket Ø 35 mm 35.0
PRESOCK-JR-38S Heavy Preassembly Socket Ø 38 mm 38.0
PRESOCK-JR-42L Light Preassembly Socket Ø 42 mm 42.0

Preassembly Plates for MULTICEN-MIN and MULTICEN-JR

Part Number Description Tubing OD (mm)
PREPLATE-JR-6 Preassembly Plate Ø 6 mm 6.0
PREPLATE-JR-8 Preassembly Plate Ø 8 mm 8.0
PREPLATE-JR-10 Preassembly Plate Ø 10 mm 10.0
PREPLATE-JR-12 Preassembly Plate Ø 12 mm 12.0
PREPLATE-JR-14 Preassembly Plate Ø 14 mm 14.0
PREPLATE-JR-15 Preassembly Plate Ø 15 mm 15.0
PREPLATE-JR-16 Preassembly Plate Ø 16 mm 16.0
PREPLATE-JR-18 Preassembly Plate Ø 18 mm 18.0
PREPLATE-JR-20 Preassembly Plate Ø 20 mm 20.0
PREPLATE-JR-22 Preassembly Plate Ø 22 mm 22.0
PREPLATE-JR-25 Preassembly Plate Ø 25 mm 25.0
PREPLATE-JR-28 Preassembly Plate Ø 28 mm 28.0
PREPLATE-JR-30 Preassembly Plate Ø 30 mm 30.0
PREPLATE-JR-32 Preassembly Plate Ø 32 mm 32.0
PREPLATE-JR-35 Preassembly Plate Ø 35 mm 35.0
PREPLATE-JR-38 Preassembly Plate Ø 38 mm 38.0
PREPLATE-JR-42 Preassembly Plate Ø 42 mm 42.0

37° Flaring

37 degree Flaring Examples

Flaring Tools for MULTICEN-MIN and MULTICEN-JR

Part Number Description Tubing OD (mm)
FLAIRBLOCK-JR Flaring Block 6-42
FLAIRTOOL-JR-6 Flaring Tool Ø 6 mm 6.0
FLAIRTOOL-JR-8 Flaring Tool Ø 8 mm 8.0
FLAIRTOOL-JR-10 Flaring Tool Ø 10 mm 10.0
FLAIRTOOL-JR-12 Flaring Tool Ø 12 mm 12.0
FLAIRTOOL-JR-14 Flaring Tool Ø 14 mm 14.0
FLAIRTOOL-JR-15 Flaring Tool Ø 15 mm 15.0
FLAIRTOOL-JR-16 Flaring Tool Ø 16 mm 16.0
FLAIRTOOL-JR-18 Flaring Tool Ø 18 mm 18.0
FLAIRTOOL-JR-20 Flaring Tool Ø 20 mm 20.0
FLAIRTOOL-JR-22 Flaring Tool Ø 22 mm 22.0
FLAIRTOOL-JR-25 Flaring Tool Ø 25 mm 25.0
FLAIRTOOL-JR-28 Flaring Tool Ø 28 mm 28.0
FLAIRTOOL-JR-30 Flaring Tool Ø 30 mm 30.0
FLAIRTOOL-JR-32 Flaring Tool Ø 32 mm 32.0
FLAIRTOOL-JR-35 Flaring Tool Ø 35 mm 35.0
FLAIRTOOL-JR-38 Flaring Tool Ø 38 mm 38.0
FLAIRTOOL-JR-42 Flaring Tool Ø 42 mm 42.0
