Tigerflex

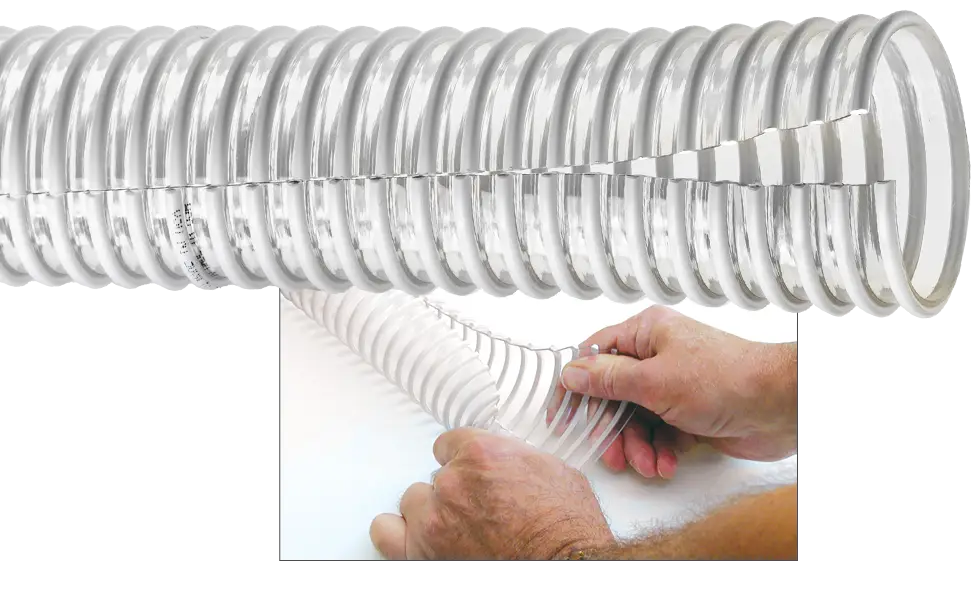

“Cover Guard Slit”
CG-SL™ Series
Pre-slit PVC Protection Cover Hose
GENERAL APPLICATIONS
- Cable and hose bundle protection (MSHA)
- Mine supply line cover protection
CONSTRUCTION
PVC tube with rigid PVC helix
SERVICE TEMPERATURE RANGE
-4°F (-20°C) to +150°F (+65°C)*
*Actual service temperature range is application dependent.
FEATURES AND ADVANTAGES
- MSHA (08) Approved – Meets U.S. Dept. of Labor Administration requirements for flame-resistance for use in mines for protection of hose bundles. Optional, special order, red or green colored helix also approved.
- Easy Slide Helix – Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
- Pre-slit – Allows for easy insertion of hose bundles.
| Series Number | ID | OD | Working Pressure (psi) |
Vacuum Rating Hg (in) |
Min. Bending Radius (in) at 68°F |
Standard Length (ft) |
Weight (lbs/ft) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | at 68°F | at 104°F | at 68°F | at 104°F | ||||
| CG200 | 2 | 50.8 | 2.30 | 58.4 | 12 | 6 | 10 | 5 | 2 | 100 | 0.28 |
| CG238 | 2 3/8 | 60.3 | 2.76 | 70.1 | 12 | 6 | 10 | 5 | 2 | 100 | 0.38 |
| CG250 | 2 1/2 | 63.5 | 2.81 | 71.3 | 10 | 5 | 8 | 4 | 2 | 100 | 0.39 |
| CG300 | 3 | 76.2 | 3.35 | 85.0 | 8 | 4 | 7 | 3 | 3 | 100 | 0.45 |
| CG350 | 3 1/2 | 88.9 | 3.83 | 97.4 | 8 | 4 | 7 | 3 | 3 | 100 | 0.51 |
| CG400 | 4 | 102.4 | 4.39 | 111.4 | 6 | 3 | 6 | 3 | 3 | 100 | 0.64 |
NOTES:
• Service life may vary depending on operating conditions and type of material being conveyed.
COMPLIANCES (click here for details)
MSHA (08), Phthalate Free (10), RoHS (11)
