The Brewt
Alfagomma
T422LH Series
Liquid S&D Brewery Hose
GENERAL APPLICATIONS
- Brewery suction and discharge
- Liquid food and alcoholic beverage suction and discharge, up to 190 proof or 95% alcohol content*
- Versatile hose for applications requiring superb flexibility and light weight, while still maintaining high strength and durability

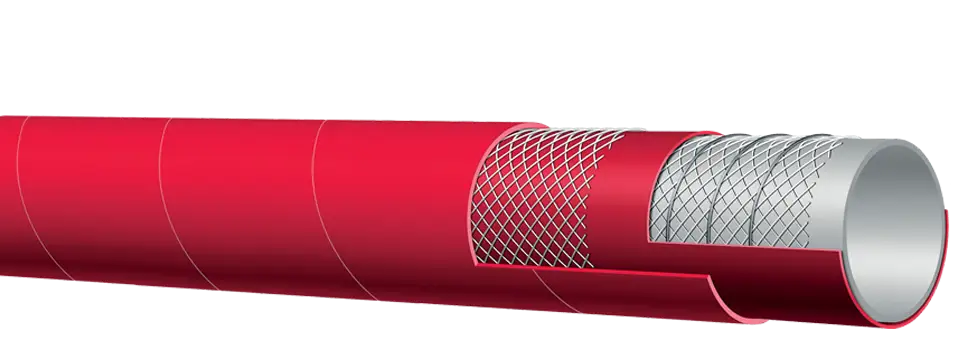

CONSTRUCTION
- Tube – White Chlorobutyl – meets FDA and 3A (18-03) requirements
- Reinforcement – High tensile textile cords with specially designed embedded helix wires
- Cover – Red smooth NR/EPDM blend for abrasion and ozone resistance
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +226°F (+108°C)
BRANDING
ALFAGOMMA ITALY 422 10 bar (150 psi) BREWERY S&D
– extra flexible – FDA
FEATURES AND ADVANTAGES
- Extreme Flexibility Uniquely designed for maximum flexibility, bends easily around brewery equipment and works well in tight spaces.
- Lightweight – Up to 25% lighter weight than similar rubber hoses, while still maintaining 150 PSI working pressure.
- High Heat Resistance – Chlorobutyl tube capable of handling +226°F (+108°C) on a continuous basis. Allows for sterilization with +266°F (+130°C) steam for 30 minutes or with 5% soda solution.
- High Purity Tube – Will not impart odor or taste.
- Smooth Cover – Designed for easy cleaning, no gaps or crevices for dirt or bacteria to hide. Also provides a smooth surface for clamping.
*This correction is to rectify the relationship between the unit proof and % alcohol content in the U.S. system. The alcohol content % = 0.5 x Proof. There are discrepancies between proof and % alcohol content as it differs from country to country. Calculations for the U.S. are shown here. EXAMPLE: Proof is a method of measuring the alcohol content of spirits. A spirits’ product that has a 40% alcohol content by volume is 80 proof [40 multiplied by 2 = 80].
| Series Number | ID | OD | Max Working Pressure (psi) |
Vacuum Hg (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| T422LH100 | 1 | 25 | 1.54 | 39 | 150 | 30 | 2 | 100 | 0.66 |
| T422LH125 | 1 1/4 | 32 | 1.81 | 46 | 150 | 30 | 2 1/2 | 100 | 0.81 |
| T422LH150 | 1 1/2 | 38 | 2.05 | 52 | 150 | 30 | 3 | 100 | 0.93 |
| T422LH200 | 2 | 51 | 2.56 | 65 | 150 | 30 | 4 | 100 | 1.21 |
| T422LH250 | 2 1/2 | 63 | 3.11 | 79 | 150 | 30 | 5 | 100 | 1.81 |
| T422LH300 | 3 | 76 | 3.62 | 92 | 150 | 27 | 6 | 100 | 2.30 |
| T422LH400 | 4 | 102 | 4.64 | 118 | 150 | 27 | 8 | 100 | 3.01 |
CONSULT FOOD HOSE GUIDE FOR MATERIAL COMPATIBILITY.
COUPLING SUGGESTIONS: Quick-Acting couplings attached with bands.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
