Alfagomma
T650AH Series
150 PSI Oil Discharge Hose
GENERAL APPLICATIONS
- Oil discharge hose designed for use on trucks, docks or barges where a soft wall hose is required

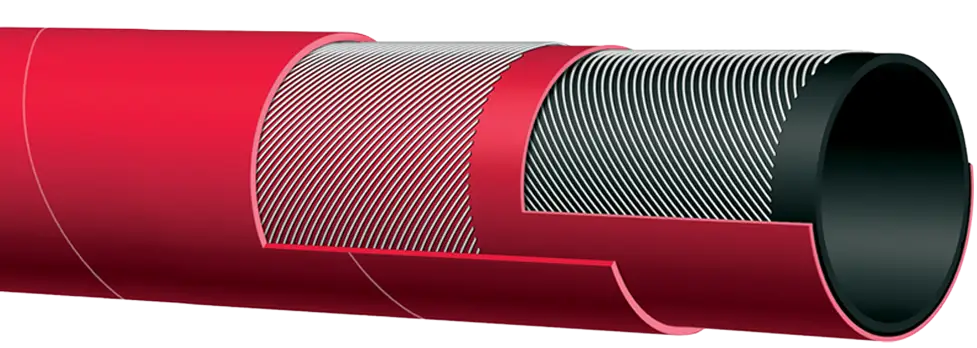

CONSTRUCTION
- Tube – Black conductive NBR
- Reinforcement – Spiraled high tensile textile cords with embedded static wire
- Cover – Red CR – abrasion, ozone and hydrocarbon resistant
WORKING PRESSURE
Constant Pressure – 10 Bar (150 PSI)
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +176°F (+80°C)
BRANDING
ALFAGOMMA – ITALY 650 10 BAR (150 PSI) – PETROLEUM DELIVERY (in yellow letters)
- No certification for marine applications
| Series Number | ID | OD | Max Working Pressure (psi) |
Standard Length (ft) |
Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||
| T650AH150 | 1 1/2 | 38 | 1.97 | 50 | 150 | 100 | 0.77 |
| T650AH200 | 2 | 51 | 2.40 | 61 | 150 | 100 | 0.82 |
| T650AH300 | 3 | 76 | 3.46 | 88 | 150 | 100 | 1.42 |
| T650AH400 | 4 | 102 | 4.49 | 114 | 150 | 100 | 1.92 |
COUPLING SUGGESTIONS: Quick-Acting or combination nipples attached with bands.
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
