Alfagomma
T6D1AA Series
400 PSI Oil Rigger / Frack Discharge Hose
GENERAL APPLICATIONS
- Fracking fluids, liquid mud and crude oil delivery in oil field and gas exploration

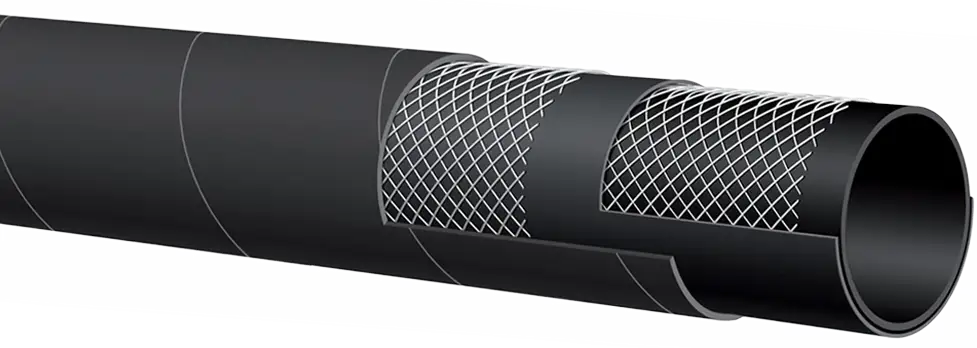

CONSTRUCTION
- Tube – Black Synthetic Rubber
- Reinforcement – High tensile textile cords
- Cover – Black synthetic elastomer – abrasion, oil and ozone resistant
SERVICE TEMPERATURE RANGE
-22°F (-30°C) to +212°F (+100°C)
BRANDING
ALFAGOMMA – ITALY OIL RIGGER – FRACK 27 BAR (400 PSI) (in blue letters)
| Part Number | ID | OD | Max Rec. WP (psi) |
Standard Length (ft) |
Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||
| T6D1AA100 | 1 | 25 | 1.38 | 35 | 75 | 12.5 | 0.43 |
| T6D1AA112 | 1 1/8 | 28 | 1.50 | 38 | 75 | 12.5 | 0.47 |
| T6D1AA125 | 1 1/4 | 32 | 1.65 | 42 | 75 | 12.5 | 0.52 |
| T6D1AA137 | 1 3/8 | 35 | 1.77 | 45 | 75 | 12.5 | 0.56 |
| T6D1AA150 | 1 1/2 | 38 | 1.89 | 48 | 75 | 12.5 | 0.61 |
| T6D1AA162 | 1 5/8 | 42 | 2.05 | 52 | 75 | 12.5 | 0.66 |
| T6D1AA175 | 1 3/4 | 45 | 2.17 | 55 | 75 | 12.5 | 0.70 |
| T6D1AA189 | 1 7/8 | 48 | 2.28 | 58 | 75 | 12.5 | 0.75 |
| T6D1AA200 | 2 | 51 | 2.48 | 63 | 75 | 12.5 | 0.97 |
| T6D1AA225 | 2 1/4 | 57 | 2.72 | 69 | 75 | 12.5 | 1.07 |
| T6D1AA238 | 2 3/8 | 60 | 2.91 | 74 | 75 | 12.5 | 1.31 |
| T6D1AA250 | 2 1/2 | 63 | 3.03 | 77 | 75 | 12.5 | 1.37 |
| T6D1AA300 | 3 | 76 | 3.54 | 90 | 75 | 12.5 | 1.64 |
| T6D1AA350 | 3 1/2 | 90 | 4.09 | 104 | 75 | 12.5 | 1.95 |
| T6D1AA400 | 4 | 102 | 4.57 | 116 | 75 | 12.5 | 2.18 |
| T6D1AA450 | 4 1/2 | 115 | 5.08 | 129 | 75 | 12.5 | 2.43 |
| T6D1AA500 | 5 | 127 | 5.55 | 141 | 75 | 12.5 | 2.68 |
| T6D1AA600 | 6 | 152 | 6.61 | 168 | 75 | 12.5 | 3.26 |
| T6D1AA662 | 6 5/8 | 168 | 7.24 | 184 | 75 | 12.5 | 3.57 |
| T6D1AA800 | 8 | 203 | 8.70 | 221 | 75 | 12.5 | 4.96 |
Kuriyama offers a full line of Quick-Acting couplings, pin lug shank couplings and combination nipples. Refer to current Kuriyama-Couplings™ and Accessories Catalog for type.
