Products
King Bee
KBEE™ Series
Polyethylene Liquid Suction and Wastewater Hose
GENERAL APPLICATIONS
- Pumps, rental and construction dewatering
- Pumps, trash
- Septic and wastewater handling
- Water suction – standard duty
CONSTRUCTION
Flexible polyethylene (LDPE) tube with polyethylene (LDPE) ribs and cuffed ends.
SERVICE TEMPERATURE RANGE
-40°F (-40°C) to +150°F (+65°C)*
*Actual service temperature range is application dependent.
FEATURES AND ADVANTAGES
- Superior Flexibility! – Corrugated tube and ribs provides high flexibility, perfect for maneuvering in tight areas such as portable toilets.
- “Cold-Flex” Materials – Hose remains flexible in sub-zero temperatures.
- Crush Resistant – Will spring back to original shape after being crushed, will not kink!
- Easy Slide Helix – Exposed ribs protect hose tube from cover wear, and allow hose to slide easily over rough surfaces. Easy-to-handle.
- Leak Proof Cuffs – Overmolded cuffs eliminate leaking and will not separate from the hose. Each cuff and unit is 100% factory tested.
- Additional Cuffs – Additional 2" and 3" cuffs are available for making hose repairs and custom lengths.
| Part Number | ID | OD | Working Pressure at 68°F (psi) |
Vacuum Rating Hg at 68°F (in) |
Min. Bending Radius at 68°F(in) |
Standard Length (ft) |
Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| KBEE200 | 2 | 52.7 | 2.76 | 69.5 | 15 | 29 | 3.5 | 60/50/40/30/25/20/10 | 0.72 |
| KBEE300 | 3 | 76 | 4.06 | 97 | 7 | 29 | 6.5 | 60/50/30/25/20 | 1.36 |
NOTE: Service life may vary depending on operating conditions and type of material being conveyed.

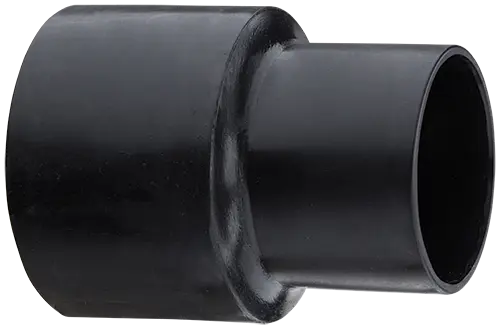

CUFF Series
King Bee Additional Cuffs
| Part Number | ID (in) |
Weight (lbs) |
|---|---|---|
| CUFF2 | 2 | 0.20 |
| CUFF3 | 3 | 0.27 |

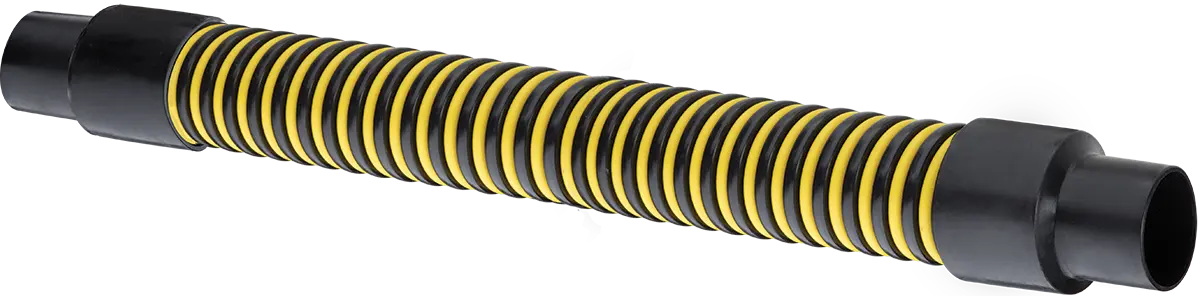

King Bee
KBEE™ Series
Polyethylene Hose Guard
GENERAL APPLICATIONS
- Protection of high pressure sewer jetting hoses
CONSTRUCTION
Flexible polyethylene (LDPE) tube with polyethylene (LDPE) ribs and cuffed ends.
SERVICE TEMPERATURE RANGE
-40°F (-40°C) to +150°F (+65°C)*
*Actual service temperature range is application dependent.
FEATURES AND ADVANTAGES
- Easy Slide Interior – Low coefficient of friction polyethylene tube allows for sewer jetting hoses to slide through easily, protecting them from wear.
- “Cold-Flex” Materials – Remains flexible in sub-zero temperatures.
- Crush Resistant – Will spring back to original shape after being crushed, will not kink!
- Easy Slide Helix – Exposed ribs protect hose tube from cover wear, and allow hose to slide easily over rough surfaces. Easy-to-handle.
- Leak Proof Cuffs – Overmolded cuffs eliminate leaking and will not separate from the hose. Each cuff and unit is 100% factory tested.
| Part Number | ID | OD | Working Pressure at 68°F (psi) |
Vacuum Rating Hg at 68°F (in) |
Min. Bending Radius at 68°F (in) |
Standard Length (ft) | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||||
| KBEE2X3 | 2 | 50.8 | 2.76 | 70.1 | 15 | 29 | 3.5 | 3 | 2.55 |
| KBEE3X3 | 3 | 76.2 | 4.06 | 103.1 | 7 | 29 | 6.5 | 3 | 4.8 |
NOTE: Service life may vary depending on operating conditions and type of material being conveyed.

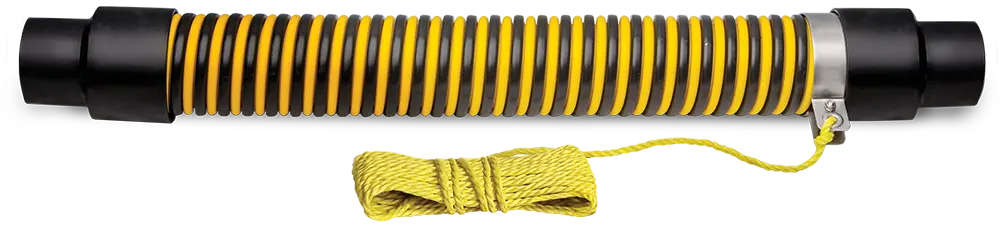

KBC™ Series
King Bee™ Collar Clamp with 20' Rope
| Part Number | ID (in) |
Material | Weight (lbs) |
|---|---|---|---|
| KBC-CS300 | 3 | Carbon Steel | 0.64 |
| KBC300 | 3 | Stainless Steel | 0.67 |
