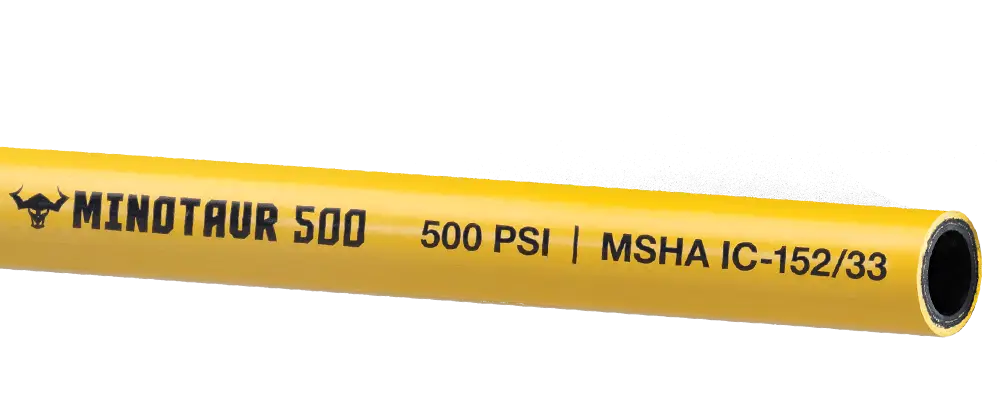

Minotaur 500
MNTR Series
500 PSI Air and Multipurpose Hose
GENERAL APPLICATIONS
- Air hammer
- Heavy construction
- Mining
- Petroleum transfer
- Quarry operations
- Rock drilling
- Washdown
- Water jetting
CONSTRUCTION
- Tube – Black non-conductive NBR (ARPM Class A)
- Reinforcement – High tensile textile braids
- Cover – Yellow NBR – abrasion, ozone, hydrocarbon resistant, non-conductive and MSHA-approved flame-resistant smooth cover. 1 1/4" and 1 1/2" ID wrapped finish.
SERVICE TEMPERATURE RANGE
-40°F (-40°C) to +212°F (+100°C)*
*Actual service temperature range is application dependent.
BRANDING
- Front:
Kuriyama
MINOTAUR 500 500 PSI MSHA IC-152/33 ELECTRICALLY NON-CONDUCTIVE - Back: MINATR - ___ - [ID Size] – [Date Code]
FEATURES AND ADVANTAGES
- Superior Abrasion Resistance – Specially formulated rubber cover provides greater abrasion resistance for demanding applications.
- Flame Resistant Cover – MSHA approved for acceptance of products to be used in underground mines (No. IC-152/33).
- Oil Resistant Tube – Meets APRM Class A (High Oil Resistance) Rating, for use with gasoline, diesel, biodiesel and kerosene.
- Non-conductive Tube and Cover^ – Helps protect user from shock when used near high-voltage sources.
- Safety Yellow Cover – High visibility, florescent yellow cover reduces risk of running or tripping over hose.
- Mandrel-Built Braided Construction Quality
- Stable under pressure with minimal expansion and twisting
- Better kink resistance and dimensional consistency
- Superior pressure tolerance compared to competitors
- Highly flexible design, works well in tight spaces
| Series Number | ID | OD | Working Pressure (psi)† |
Total Reel Length (approx. ft)** |
Packaging | Weight (lbs/ft) |
||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | |||||
| MINATR-025 | 1/4 | 6 | 0.55 | 14 | 500 | 500-550-600 | Max 3 pcs each reel** | 0.12 |
| MINATR-038 | 3/8 | 10 | 0.71 | 18 | 500 | 500-550 | Max 3 pcs each reel** | 0.18 |
| MINATR-050 | 1/2 | 13 | 0.87 | 22 | 500 | 450-500 | Max 3 pcs each reel** | 0.24 |
| MINATR-075 | 3/4 | 19 | 1.14 | 29 | 500 | 350-400 | Max 2 pcs each reel** | 0.35 |
| MINATR-100 | 1 | 25 | 1.42 | 36 | 500 | 150-200 | Max 2 pcs each reel** | 0.51 |
| MINATR-125 | 1 1/4 | 32 | 1.73 | 44 | 500 | – | No reel - 200 ft wrapped coils | 0.73 |
| MINATR-150 | 1 1/2 | 38 | 1.97 | 50 | 500 | – | No reel - 200 ft wrapped coils | 0.85 |
† 4:1 safety factor
**Min length 50 ft, all lengths multiples of 50 ft
^ Meets a minimum of 1,000,000 ohms per inch resistance when tested with a 1,000-volt D.C. megger.
