Sphere Lock
For General Usage, Service Temperature Range, and other product specifications, please see this page.
SLB-90EL Series
90° Elbow Female Socket x Male Ball
(Includes Buna Gasket and Locking Lever Ring)
| Part Number | Size (in) |
PSI Rating at 70°F |
Weight Each (lbs) |
Standard Carton |
|---|---|---|---|---|
| SLB-90EL400 | 4 | 217 | 12.05 | 1 |
| SLB-90EL600 | 6 | 175 | 26.09 | 1 |
| SLB-90EL800 | 8 | 175 | 32.76 | 1 |
| SLB-90EL1200 | 12 | 175 | 79.71 | 1 |

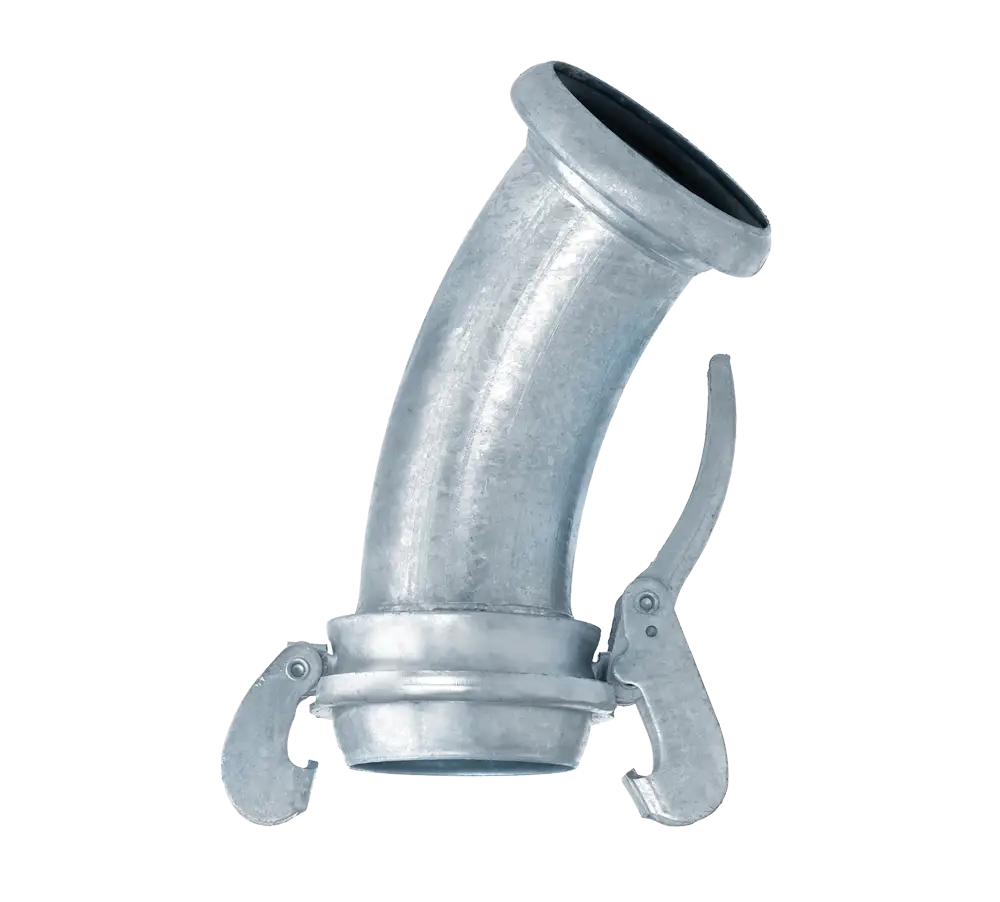

SLB-45EL Series
45° Elbow Female Socket x Male Ball
(Includes Buna Gasket and Locking Lever Ring)
| Part Number | Size (in) |
PSI Rating at 70°F |
Weight Each (lbs) |
Standard Carton |
|---|---|---|---|---|
| SLB-45EL400 | 4 | 217 | 10.06 | 1 |
| SLB-45EL600 | 6 | 175 | 20.10 | 1 |
| SLB-45EL800 | 8 | 175 | 28.46 | 1 |
| SLB-45EL1200 | 12 | 175 | 70.11 | 1 |

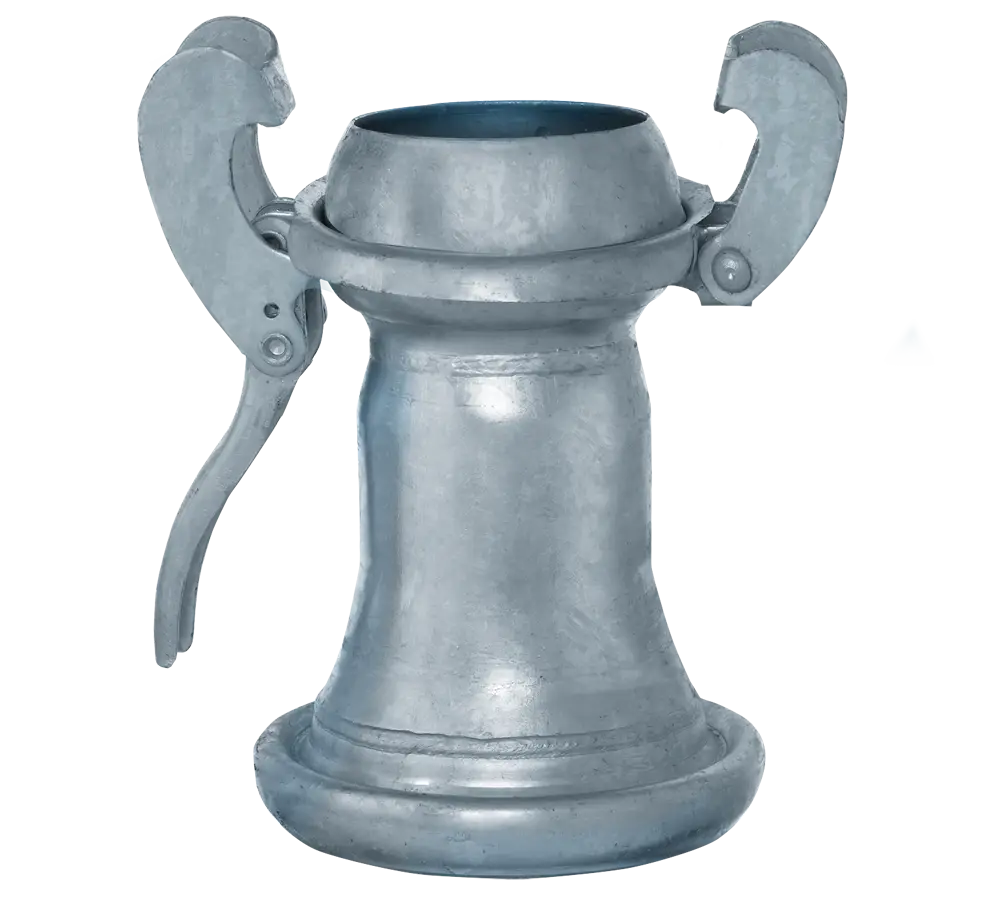

SLB-FMR Series
Female Socket x Male Ball Reducer
(Includes Buna Gasket and Locking Lever Ring)
| Part Number | Size (in) |
PSI Rating at 70°F |
Weight Each (lbs) |
Standard Carton |
|
|---|---|---|---|---|---|
| SLB-FMR4060 | 4 | 6 | 175 | 15.30 | 1 |
| SLB-FMR6040 | 6 | 4 | 175 | 10.75 | 1 |
| SLB-FMR6080 | 6 | 8 | 175 | 25.74 | 1 |
| SLB-FMR8060 | 8 | 6 | 175 | 22.15 | 1 |
