Products
Sphere Lock
For General Usage, Service Temperature Range, and other product specifications, please see this page.

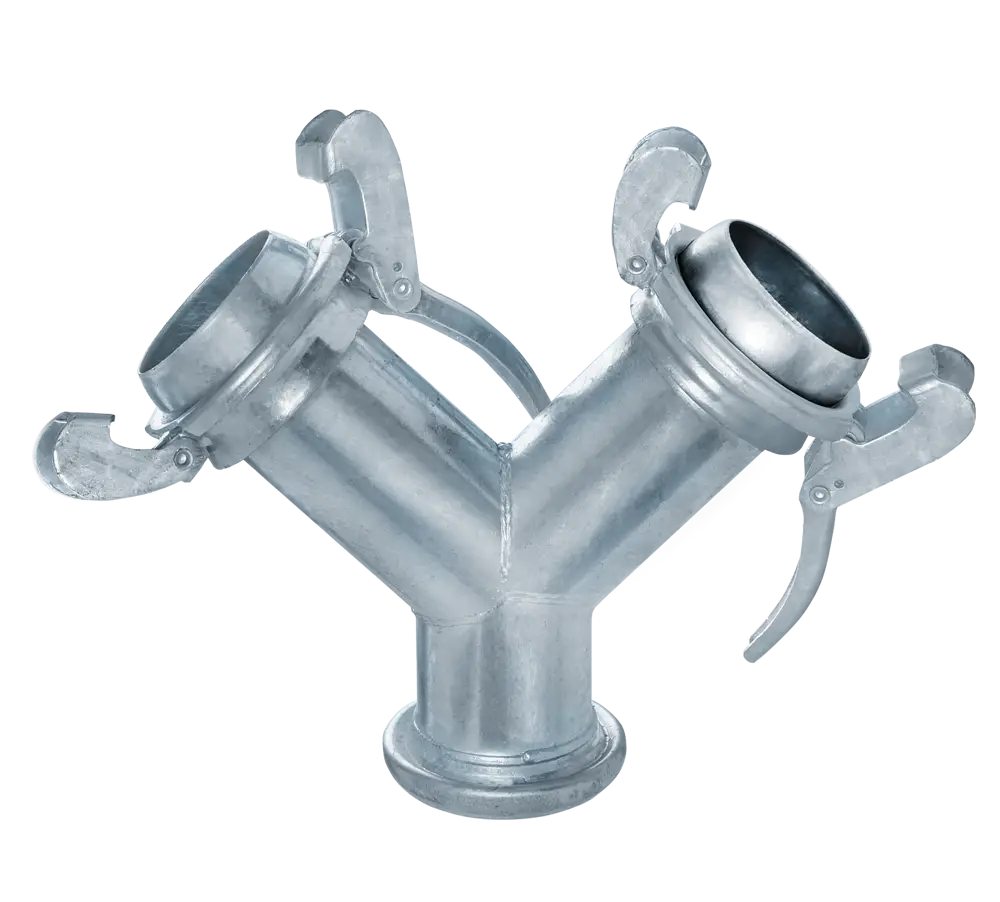

SLB-YFMM Series
Female Socket Outlet Y
(Includes Buna Gaskets and Locking Lever Ring)
| Part Number | Size (in) |
PSI Rating at 70°F |
Weight Each (lbs) |
Standard Carton |
|---|---|---|---|---|
| SLB-YFMM400 | 4 | 217 | 18.00 | 1 |
| SLB-YFMM600 | 6 | 175 | 35.00 | 1 |
| SLB-YFMM800 | 8 | 175 | 57.00 | 1 |
| SLB-YFMM1200 | 12 | 175 | 165.00 | 1 |

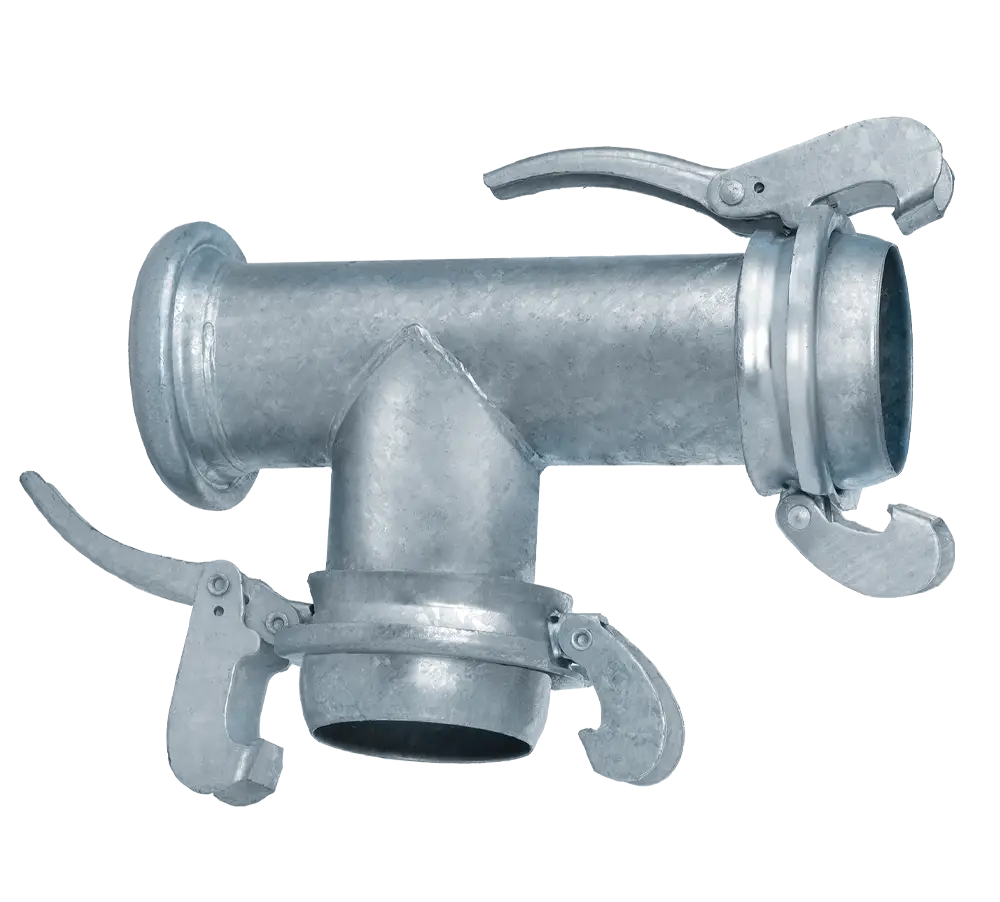

SLB-TMFM Series
Male Ball Outlet Tee
(Includes Buna Gasket and Locking Lever Rings)
| Part Number | Size (in) |
PSI Rating at 70°F |
Weight Each (lbs) |
Standard Carton |
|---|---|---|---|---|
| SLB-TMFM400 | 4 | 217 | 19.97 | 1 |
| SLB-TMFM600 | 6 | 175 | 36.39 | 1 |
| SLB-TMFM800 | 8 | 175 | 55.86 | 1 |
| SLB-TMFM1200 | 12 | 175 | 138.44 | 1 |

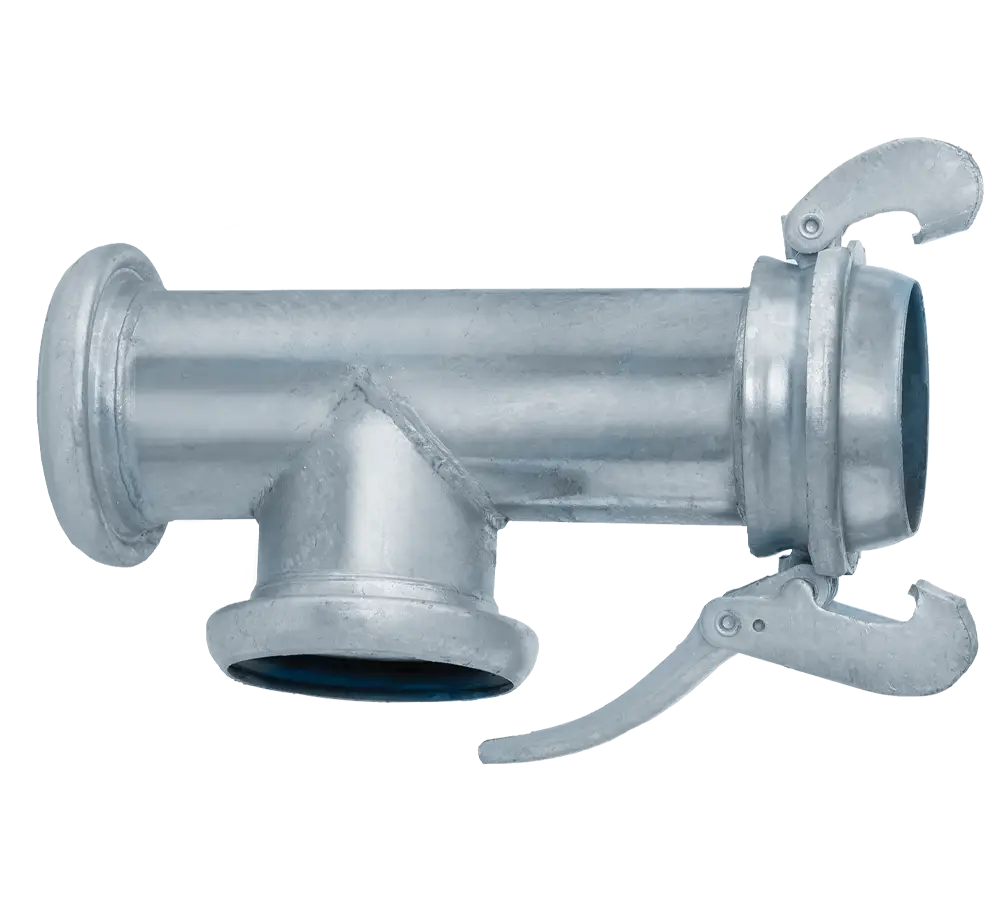

SLB-TMFF Series
Female Socket Outlet Tee
(Includes Buna Gasket and Locking Lever Rings)
| Part Number | Size (in) |
PSI Rating at 70°F |
Weight Each (lbs) |
Standard Carton |
|---|---|---|---|---|
| SLB-TMFF400 | 4 | 217 | 14.43 | 1 |
| SLB-TMFF600 | 6 | 175 | 25.16 | 1 |
| SLB-TMFF800 | 8 | 175 | 43.02 | 1 |
| SLB-TMFF1200 | 12 | 175 | 106.03 | 1 |
