KuriCrimp powered by o+p

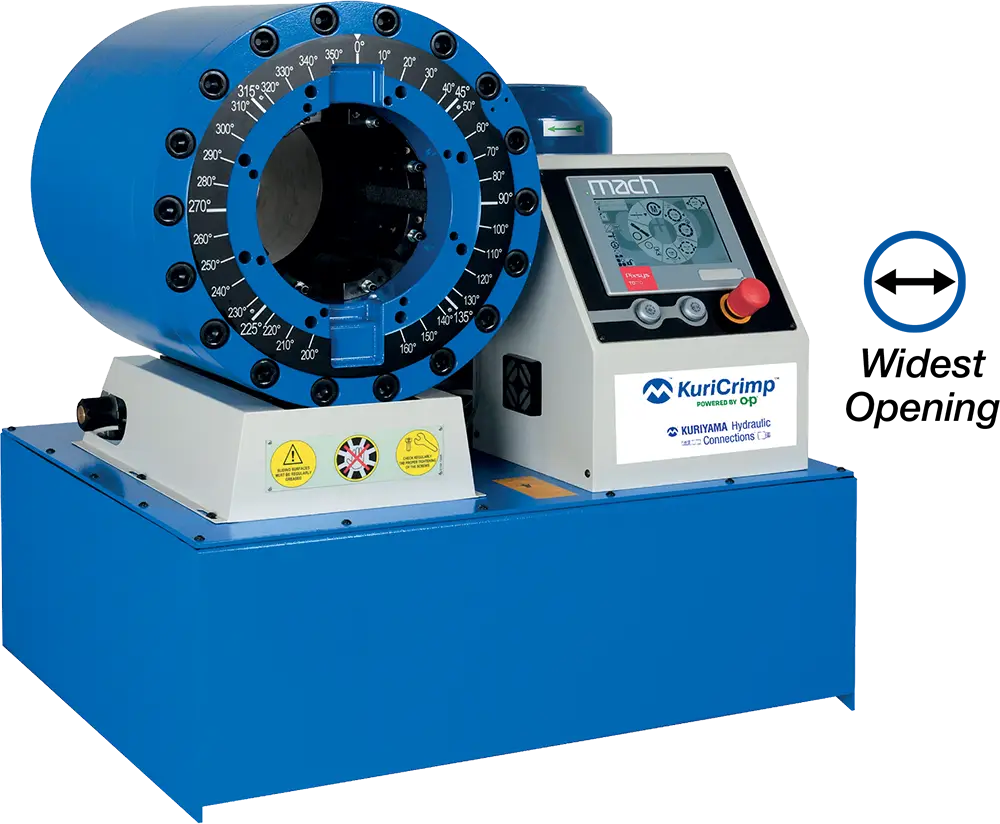

KC3-H170 Series
DESCRIPTION
The widest opening of all the Standard Volume Crimpers makes this crimper ideal for industrial hose. It makes an excellent hydraulic hose crimper as well, handling up to 2" wire braid and 4 SP hose, along with our 6 SP hoses up to 5000 PSI using S Series, 1-piece fittings. Reduction dies included.
| Hose Capacity (in) | Crimping Force (ton) | |
|---|---|---|
| 1 – 2 Wire | 2 | 308 |
| 4 SP / 6 SP | 2 / 2* | |
| 90° Fittings | 2 | |
| Industrial | 4† | |
* 2" limited to 5,000 PSI hose using 1-pc fittings
† Up to 5" depending on hose and coupling type
| Opening Diameter | |
|---|---|
| Max. Without Dies (mm / in) | 219 / 8.62 |
| Max. With Dies (mm / in) | 192 / 7.56 |
| By Die Size (mm / in) | Die Size + 61 / 2.42 |
| Crimper Size | |
|---|---|
| L x W x H (in) | 32.2 x 31.9 x 32.9 |
| Weight (lbs) | 1,102 |
| Part Number | Motor Info |
|---|---|
| KC3-H170-230/3 | 7 HP (230 V) 3 PH |
| Die Series | Die Range (mm) |
|---|---|
| H119 & H144 | 6 – 131^ |
^ Custom Dies available to 138 mm
| Hydraulic Fluid | |
|---|---|
| Type | ISO 46 |
| Amount | 110L = 29.06 Gal. |
CONTROL MECHANISM
MACH
- Full-color, touch-screen display
- Stores up to 1000 crimp specifications
- Built-in crimp diameter calculator
- Adjustable reopen diameter
- USB port option for data transfer
- Industrial hose crimp calculator
